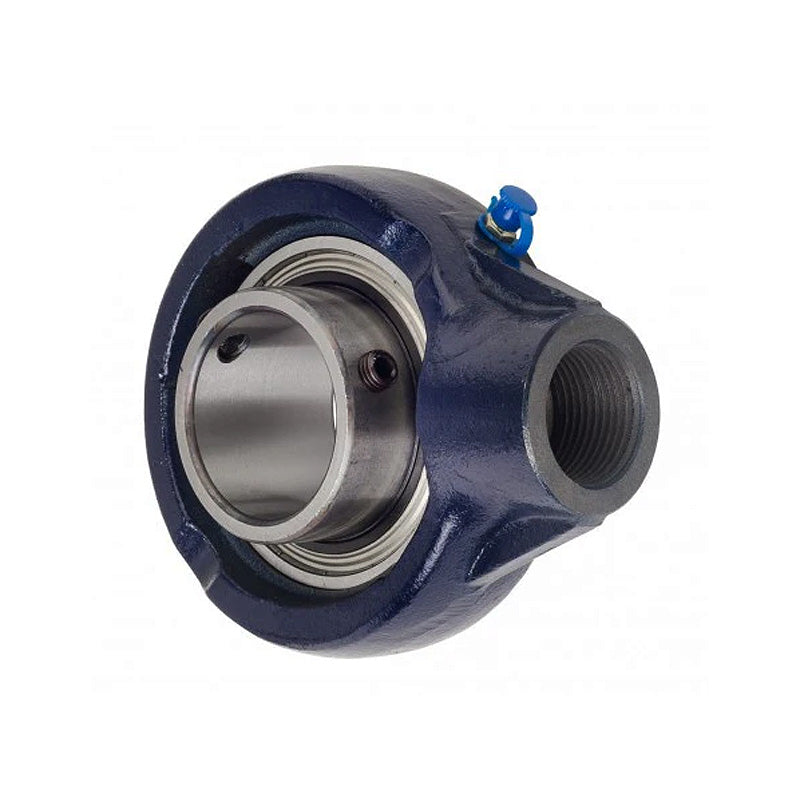

RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter

SKU: SCH35-RHP

RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter

€85.82 ex VAT
€85,82
ex VAT
In stock

Quantity Price Breaks

10 €76.38
20 €72.09
30 €71.23
40 €70.37
50 €69.51
75 €68.66
100 €64.37
200 €63.51
250 €62.65
500 €61.79
1000 €60.07
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
SKU: SCH35-RHP

RHP SCH35 Metric Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter

€85.82 ex VAT
€85,82
ex VAT

Description

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has METRIC threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

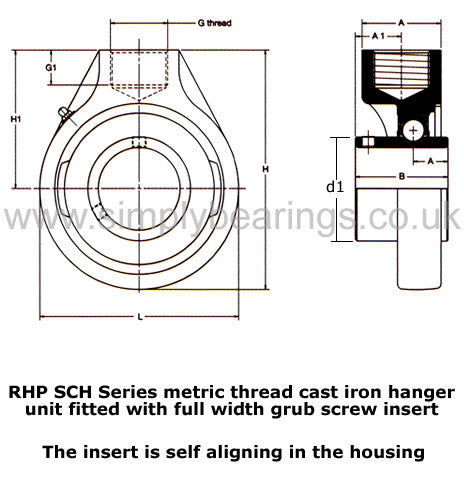

Technical

Bore = 35mm
G1 = 19mm
L = 97mm
H = 119mm
H1 = 69.8mm
Threads = M24X3 Metric
A = 39.5mm
A1 = 25.4mm
B = 42.88mm
s = 17.53mm
d1 = 46.69mm
Dynamic load Cr = 25700 N
Static load Cor = 15300 N
Rec max speed = 4500 rpm
Weight = 1.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1035-35G+insonly"
> = 1035-35G Click Here<
/a> =
Casting group = 1
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
