SKU: SCHB2.15/16-RHP

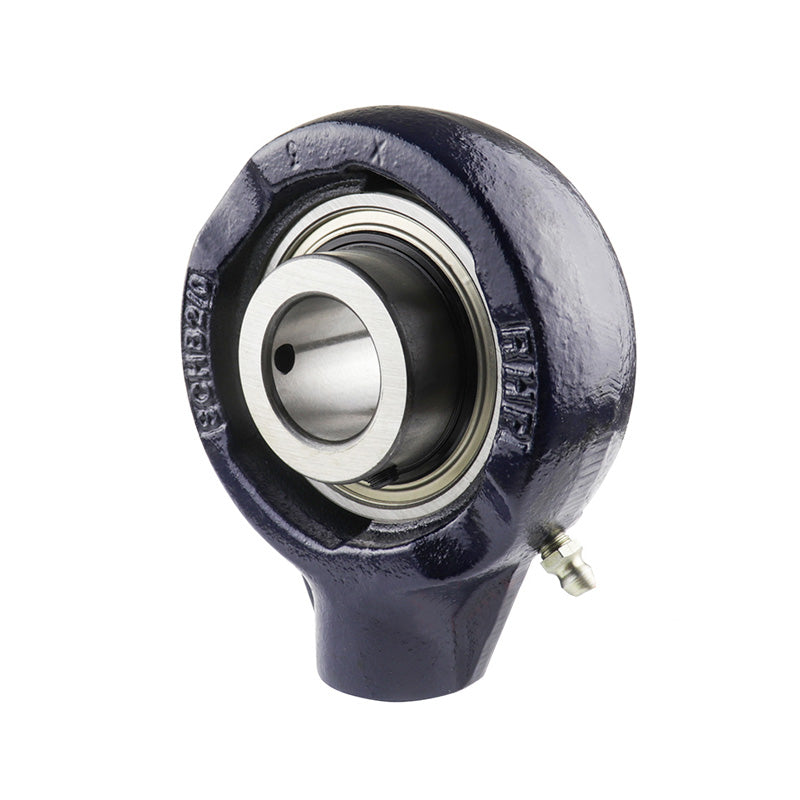

RHP SCHB2-15/16 BSP Thread Cast Iron Hanger Bearing Unit and 2-15/16 inch Bore Insert 165mm Outside Diameter
- Regular price
- €284.30 ex VAT
- Sale price
- €284,30
- Regular price
-
Quantity Price Breaks
RHP SCHB2-15/16 BSP Thread Cast Iron Hanger Bearing Unit and 2-15/16 inch Bore Insert 165mm Outside Diameter
- Regular price
- €284.30 ex VAT
- Sale price
- €284,30
- Regular price
-
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2-15/16 inch |
| G1 | = | 1.26 inch |
| L | = | 6.496 inch |
| H | = | 7.898 inch |
| H1 | = | 4.626 inch |
| Threads | = | 1-1/2 BSP |
| A | = | 2.756 inch |
| A1 | = | 1.376 inch |
| B | = | 3.062 inch |
| s | = | 1.314 inch |
| d1 | = | 3.622 inch |
| Dynamic load Cr | = | 66000 N |
| Static load Cor | = | 49500 N |
| Rec max speed | = | 2300 rpm |
| Weight | = | 6.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1075-2-15/16G+insonly" |
| > | = | 1075-2-15/16G Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
