SKU: SCHB20-RHP
RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
- Regular price
- €62.71 ex VAT
- Sale price
- €62,71
- Regular price
-
Quantity Price Breaks
RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
- Regular price
- €62.71 ex VAT
- Sale price
- €62,71
- Regular price
-
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

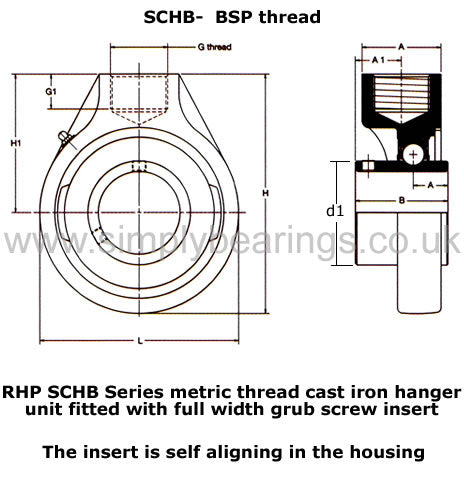

Technical
| Bore | = | 20mm |
| G1 | = | 19mm |
| L | = | 67mm |
| H | = | 91.6mm |
| H1 | = | 57.2mm |
| Threads | = | 1/2 BSP |
| A | = | 34mm |
| A1 | = | 18.26mm |
| B | = | 30.96mm |
| s | = | 12.75mm |
| d1 | = | 28.5mm |
| Dynamic load Cr | = | 12800 N |
| Static load Cor | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1020-20G+insonly" |
| > | = | 1020-20G Click Here< |
| /a> | = | |
| Casting group | = | 0 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
