RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter

SKU: SCHB30-RHP

RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter

€67.95 ex VAT
€67,95
ex VAT
In stock

Quantity Price Breaks

10 €60.48
20 €57.08
30 €56.40
40 €55.72
50 €55.04
75 €54.36
100 €50.96
200 €50.28
250 €49.60
500 €48.92
1000 €47.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter
SKU: SCHB30-RHP

RHP SCHB30 BSP Thread Cast Iron Hanger Bearing Unit and 30mm Bore Insert 89mm Outside Diameter

€67.95 ex VAT
€67,95
ex VAT

Description

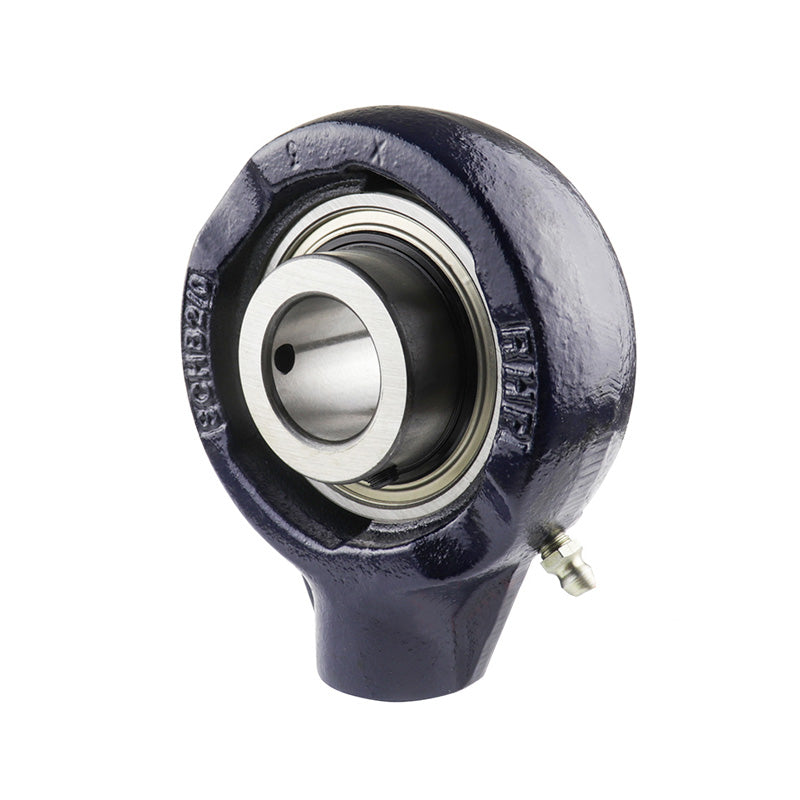

RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has BSP threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Bore = 30mm
G1 = 16mm
L = 89mm
H = 107.5mm
H1 = 61.9mm
Threads = 1/2 BSP
A = 33.5mm
A1 = 22.22mm
B = 38.1mm
s = 15.93mm
d1 = 40mm
Dynamic load Cr = 19500 N
Static load Cor = 11300 N
Rec max speed = 5300 rpm
Weight = 1.2 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1030-30G+insonly"
> = 1030-30G Click Here<
/a> =
Casting group = 2/0
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
