SKU: SCHB35-RHP

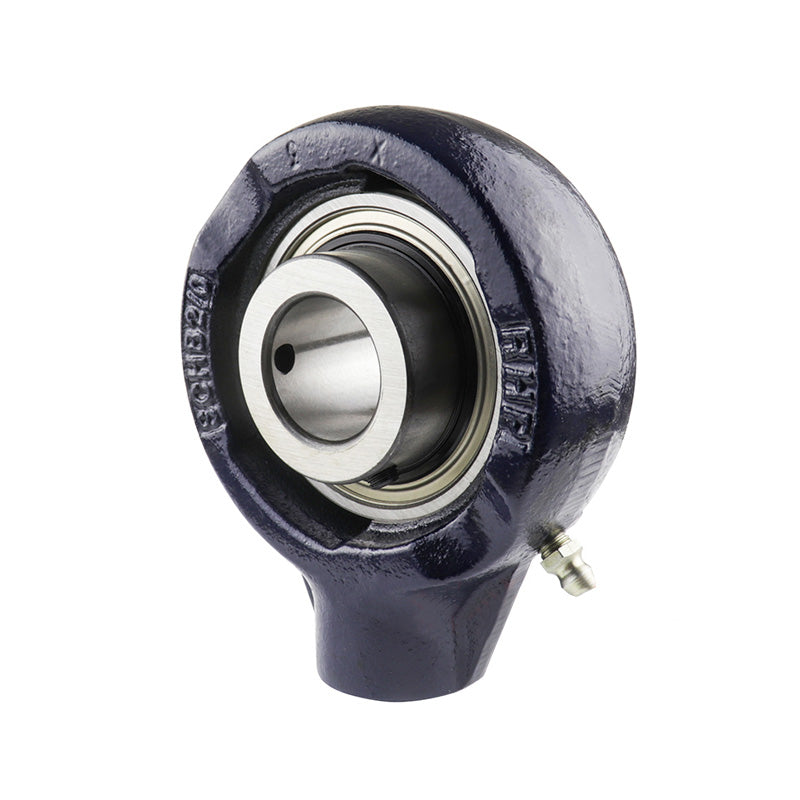

RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
- Regular price
- €85.82 ex VAT
- Sale price
- €85,82
- Regular price
-
Quantity Price Breaks
RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
- Regular price
- €85.82 ex VAT
- Sale price
- €85,82
- Regular price
-
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 35mm |
| G1 | = | 19mm |
| L | = | 97mm |
| H | = | 119mm |
| H1 | = | 69.8mm |
| Threads | = | 3/4 BSP |
| A | = | 39.5mm |
| A1 | = | 25.4mm |
| B | = | 42.88mm |
| s | = | 17.53mm |
| d1 | = | 46.69mm |
| Dynamic load Cr | = | 25700 N |
| Static load Cor | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-35G+insonly" |
| > | = | 1035-35G Click Here< |
| /a> | = | |
| Casting group | = | 1 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
