SKU: SCHB55-RHP

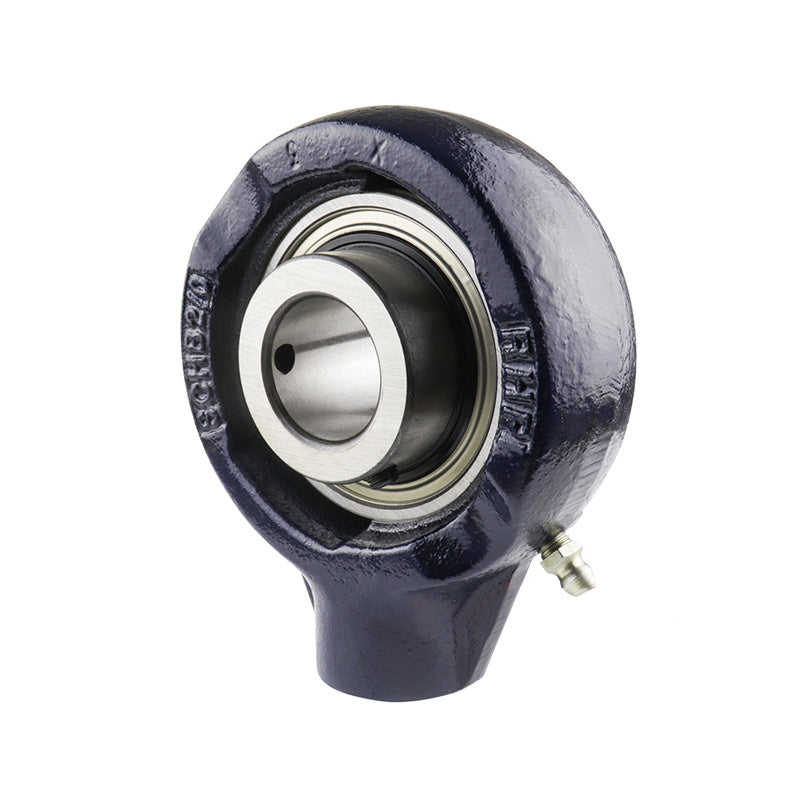

RHP SCHB55 BSP Thread Cast Iron Hanger Bearing Unit and 55mm Bore Insert 143mm Outside Diameter
- Regular price
- €182.65 ex VAT
- Sale price
- €182,65
- Regular price
-
Quantity Price Breaks
RHP SCHB55 BSP Thread Cast Iron Hanger Bearing Unit and 55mm Bore Insert 143mm Outside Diameter
- Regular price
- €182.65 ex VAT
- Sale price
- €182,65
- Regular price
-
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 55mm |
| G1 | = | 29mm |
| L | = | 143mm |
| H | = | 173.5mm |
| H1 | = | 101.6mm |
| Threads | = | 1-1/4 BSP |
| A | = | 58.5mm |
| A1 | = | 30.94mm |
| B | = | 65.07mm |
| s | = | 25.45mm |
| d1 | = | 75.34mm |
| Dynamic load Cr | = | 48000 N |
| Static load Cor | = | 33000 N |
| Rec max speed | = | 2800 rpm |
| Weight | = | 3.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1060-55G+insonly" |
| > | = | 1060-55G Click Here< |
| /a> | = | |
| Casting group | = | 4 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
