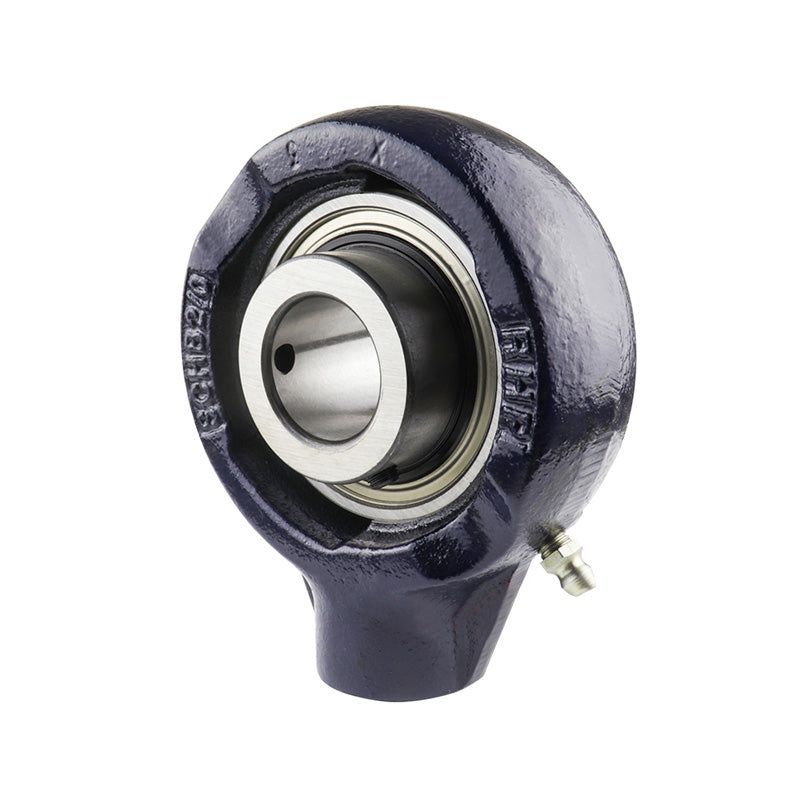

RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter

SKU: SCHB7/8-RHP

RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter

€60.78 ex VAT
€60,78
ex VAT
In stock

Quantity Price Breaks

10 €54.09
20 €51.06
30 €50.45
40 €49.84
50 €49.23
75 €48.62
100 €45.59
200 €44.98
250 €44.37
500 €43.76
1000 €42.55
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter
SKU: SCHB7/8-RHP

RHP SCHB7/8 BSP Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter

€60.78 ex VAT
€60,78
ex VAT

Description

RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has BSP threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Bore = 7/8 inch
G1 = 0.63 inch
L = 3.504 inch
H = 4.232 inch
H1 = 2.437 inch
Threads = 1/2 BSP
A = 1.319 inch
A1 = 0.875 inch
B = 1.5 inch
s = 0.627 inch
d1 = 1.575 inch
Dynamic load Cr = 19500 N
Static load Cor = 11300 N
Rec max speed = 5300 rpm
Weight = 1.2 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1030-7/8G+insonly"
> = 1030-7/8G Click Here<
/a> =
Casting group = 2/0
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
