RHP SCHB80 BSP Thread Cast Iron Hanger Bearing Unit and 80mm Bore Insert 174.5mm Outside Diameter
- Regular price
- €312.59 ex VAT
- Sale price
- €312,59
- Regular price
-
Quantity Price Breaks
RHP SCHB80 BSP Thread Cast Iron Hanger Bearing Unit and 80mm Bore Insert 174.5mm Outside Diameter
- Regular price
- €312.59 ex VAT
- Sale price
- €312,59
- Regular price
-
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

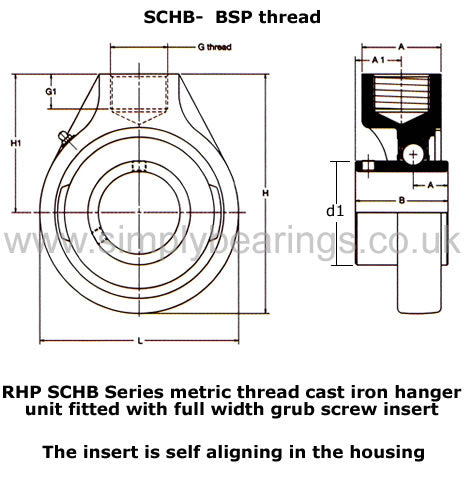

Technical
| Bore | = | 80mm |
| G1 | = | 32mm |
| L | = | 174.5mm |
| H | = | 211.5mm |
| H1 | = | 123.8mm |
| Threads | = | 1-1/2 BSP |
| A | = | 71.5mm |
| A1 | = | 41.29mm |
| B | = | 82.55mm |
| s | = | 33.37mm |
| d1 | = | 98.5mm |
| Dynamic load Cr | = | 71500 N |
| Static load Cor | = | 54500 N |
| Rec max speed | = | 2150 rpm |
| Weight | = | 8.1 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1080-80G+insonly" |
| > | = | 1080-80G Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
