SKU: SER.201

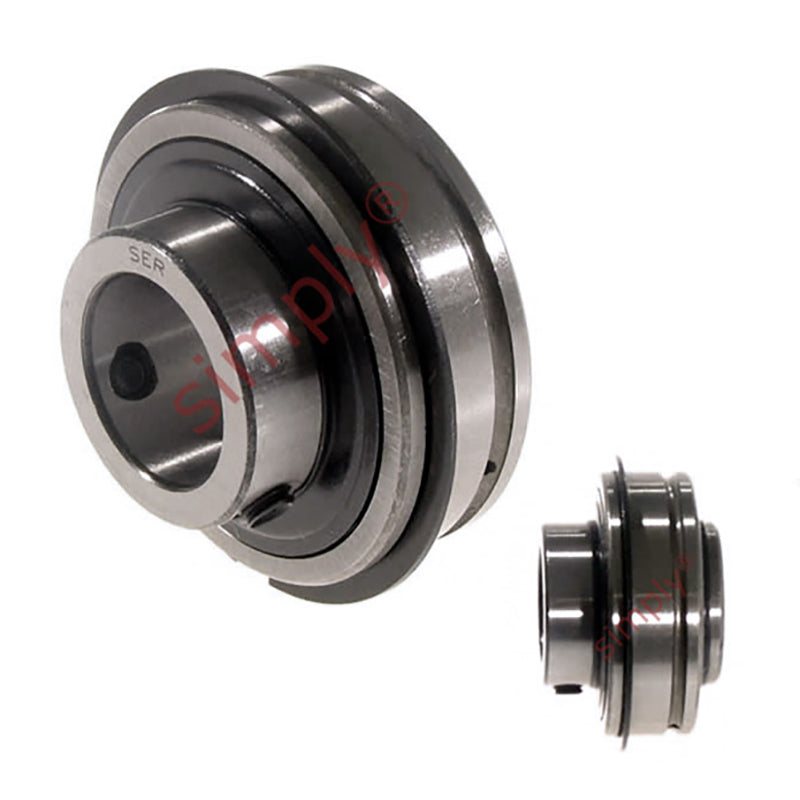

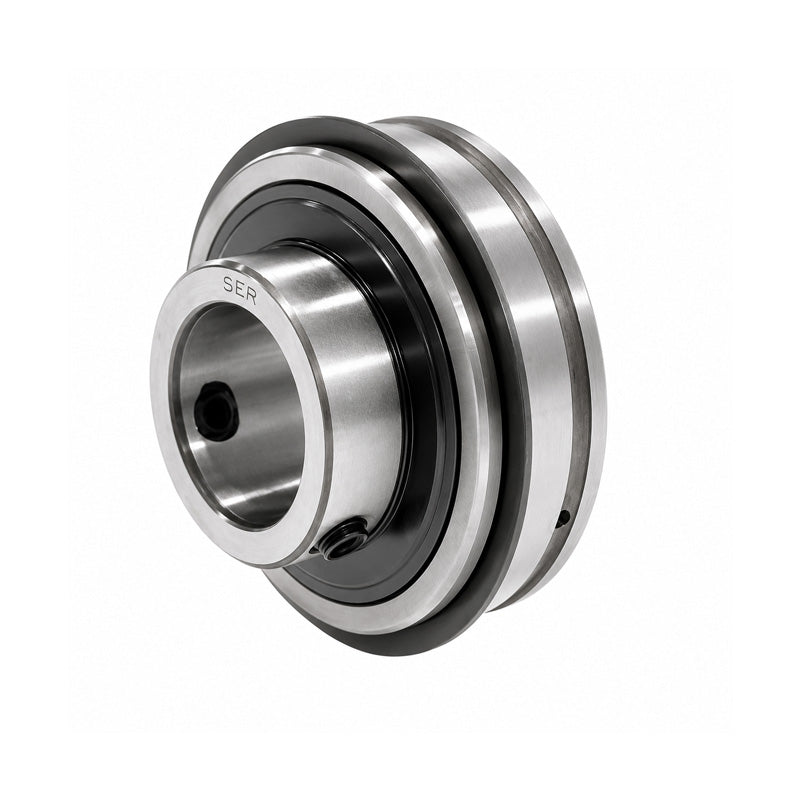

SER201 Metric Bearing Insert and Snap Ring 12mm Bore 47mm Outside Dia
- Regular price
- €17.67 ex VAT
- Sale price
- €17,67
- Regular price
-
Not in stock
Quantity Price Breaks
3
€15.73
4
€14.84
9
€14.67
19
€14.49
49
€14.31
99
€14.14
499
€13.25
999
€13.08
1999
€12.90
2999
€12.72
4999
€12.37
SKU:
SER.201
SER201 Metric Bearing Insert and Snap Ring 12mm Bore 47mm Outside Dia
- Regular price
- €17.67 ex VAT
- Sale price
- €17,67
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 12mm |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 15.9mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| E | = | 12.09mm |
| a | = | 1.07mm |
| h | = | 4mm |
| R | = | 4.14mm |
| J | = | 2.46mm |
| P | = | 52.7mm |
| G | = | 4.8mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.22 kg |
| Dynamic load | = | 1010 kgf |
| Static load | = | 630 kgf |
