SKU: SER.201-8

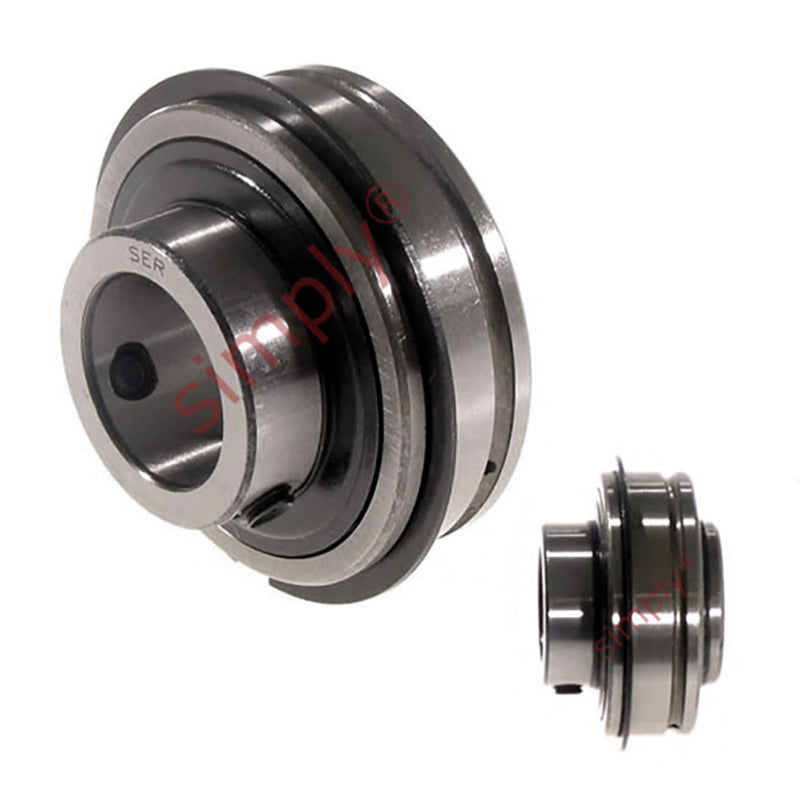

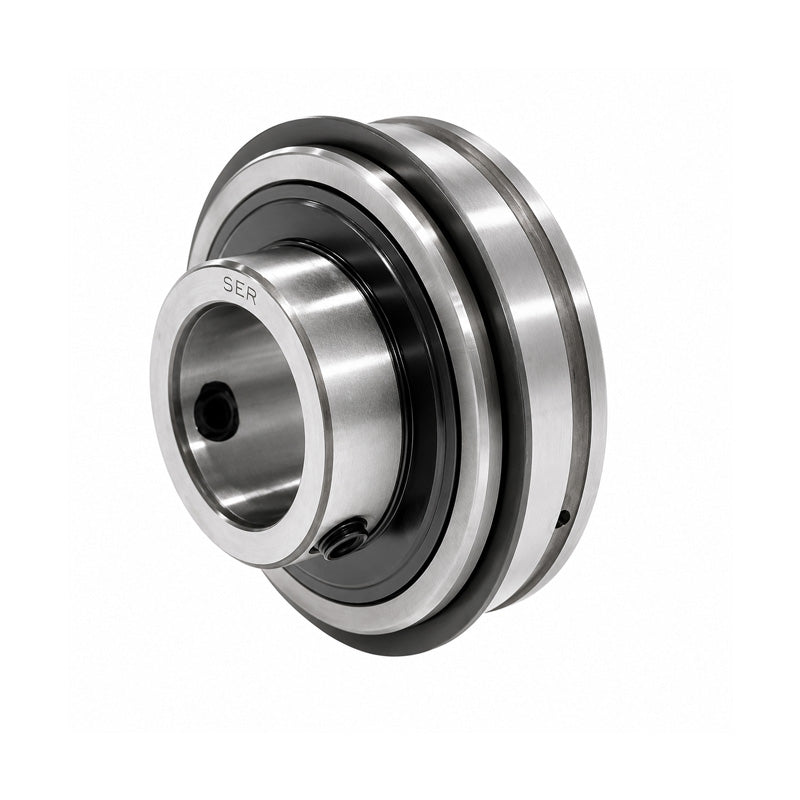

SER201-8 Imperial Bearing Insert and Snap Ring 1/2 inch Bore 47mm Outside Dia
- Regular price
- €21.91 ex VAT
- Sale price
- €21,91
- Regular price
-
Not in stock
Quantity Price Breaks
3
€19.50
4
€18.40
9
€18.19
19
€17.97
49
€17.75
99
€17.53
499
€16.43
999
€16.21
1999
€15.99
2999
€15.78
4999
€15.34
SKU:
SER.201-8
SER201-8 Imperial Bearing Insert and Snap Ring 1/2 inch Bore 47mm Outside Dia
- Regular price
- €21.91 ex VAT
- Sale price
- €21,91
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1/2 inch |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 15.9mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| E | = | 12.09mm |
| a | = | 1.07mm |
| h | = | 4mm |
| R | = | 4.14mm |
| J | = | 2.46mm |
| P | = | 52.7mm |
| G | = | 4.8mm |
| Grub screw | = | 1/4" |
| -28UNF | = | Weight |
| 0.22 kg | = | Dynamic load |
| 1010 kgf | = | Static load |
| 630 kgf | = | N/A |
