SKU: SER.205

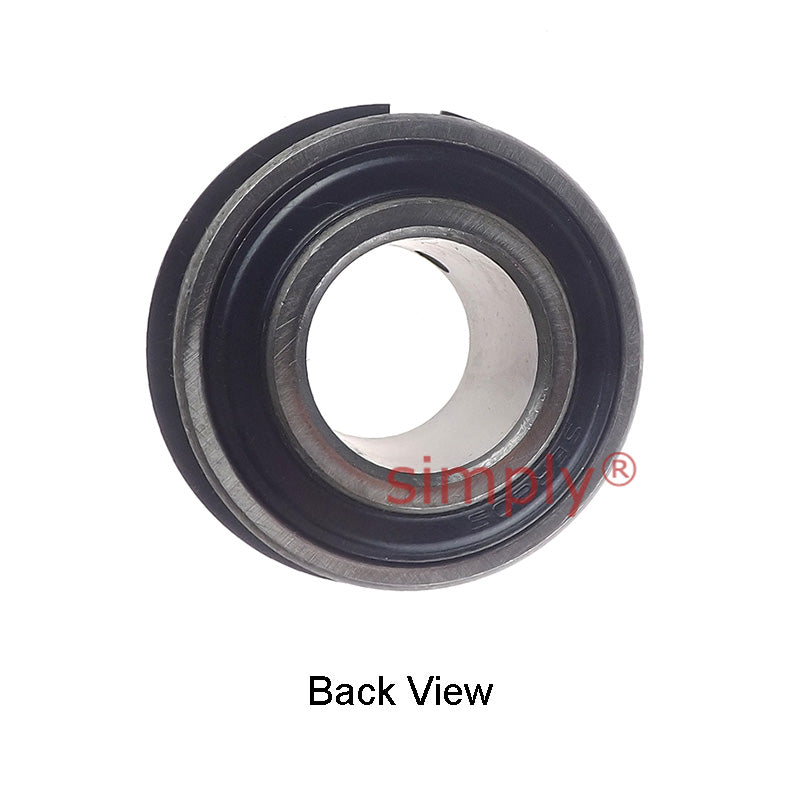

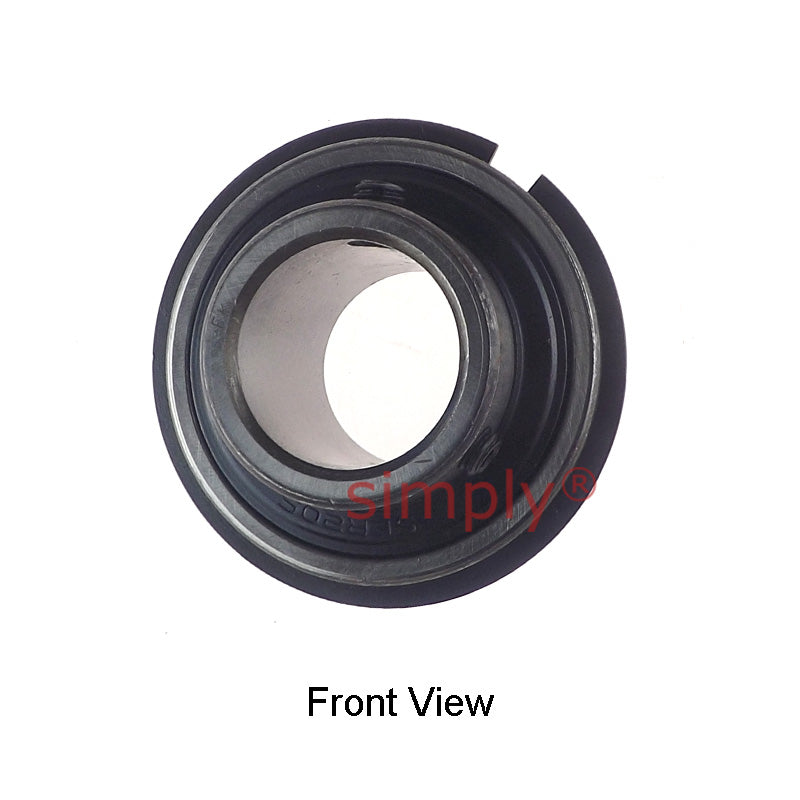

SER205 Metric Bearing Insert and Snap Ring 25mm Bore 52mm Outside Dia
- Regular price
- €12.10 ex VAT
- Sale price
- €12,10
- Regular price
-
In stock
Quantity Price Breaks
3
€10.77
4
€10.16
9
€10.04
19
€9.92
49
€9.80
99
€9.68
499
€9.08
999
€8.95
1999
€8.83
2999
€8.71
4999
€8.47
SKU:
SER.205
SER205 Metric Bearing Insert and Snap Ring 25mm Bore 52mm Outside Dia
- Regular price
- €12.10 ex VAT
- Sale price
- €12,10
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 25mm |
| D | = | 52mm |
| Bi | = | 34.9mm |
| Be | = | 19.1mm |
| n | = | 13.1mm |
| m | = | 21.8mm |
| E | = | 15.29mm |
| a | = | 1.07mm |
| h | = | 5.2mm |
| R | = | 5.74mm |
| J | = | 2.46mm |
| P | = | 57.9mm |
| G | = | 5.6mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.27 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
