SKU: SER.206

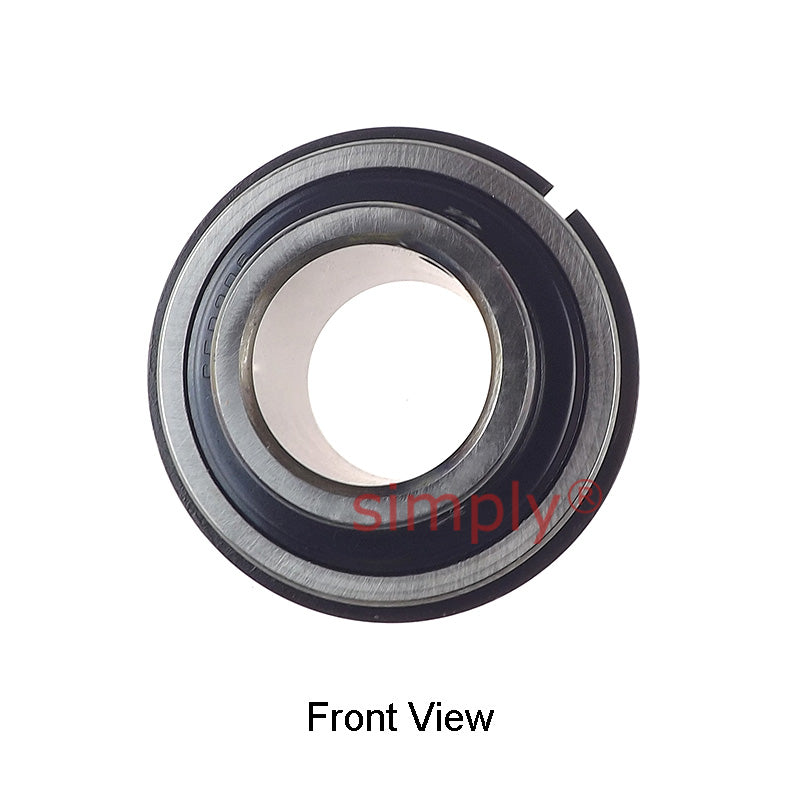

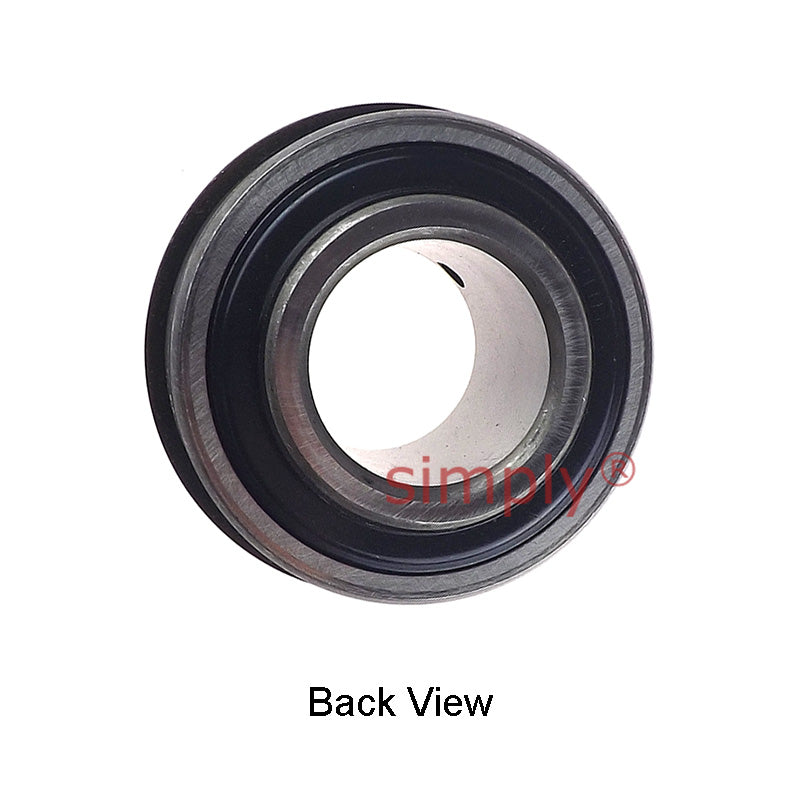

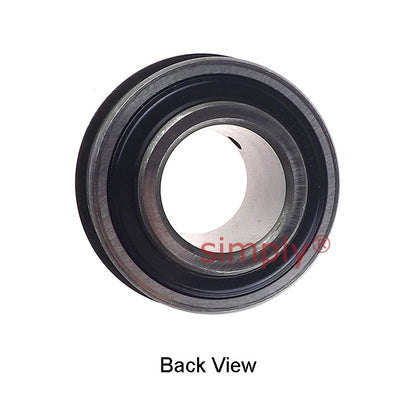

SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
- Regular price
- €15.03 ex VAT
- Sale price
- €15,03
- Regular price
-
In stock
Quantity Price Breaks
3
€13.38
4
€12.63
9
€12.47
19
€12.32
49
€12.17
99
€12.02
499
€11.27
999
€11.12
1999
€10.97
2999
€10.82
4999
€10.52
SKU:
SER.206
SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
- Regular price
- €15.03 ex VAT
- Sale price
- €15,03
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 30mm |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 22.2mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| E | = | 17.02mm |
| a | = | 1.65mm |
| h | = | 5.6mm |
| R | = | 5.92mm |
| J | = | 3.28mm |
| P | = | 67.7mm |
| G | = | 5.6mm |
| Grub screw | = | 1/4" |
| -28UNF | = | Weight |
| 0.39 kg | = | Dynamic load |
| 1530 kgf | = | Static load |
| 1020 kgf | = | Rec max speed |
| 5300 rpm | = | N/A |
