SKU: SER.207-20

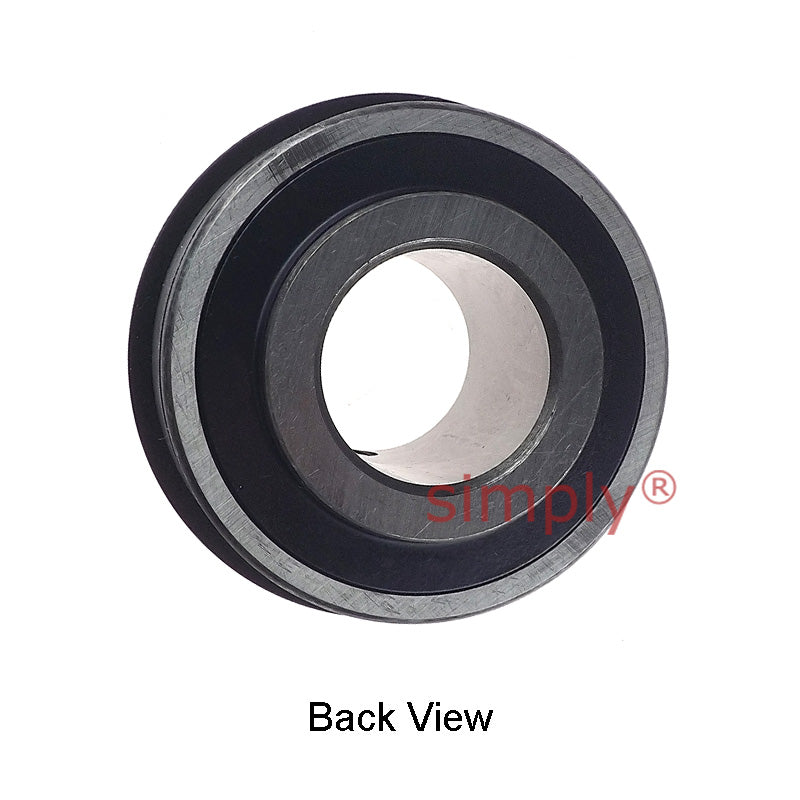

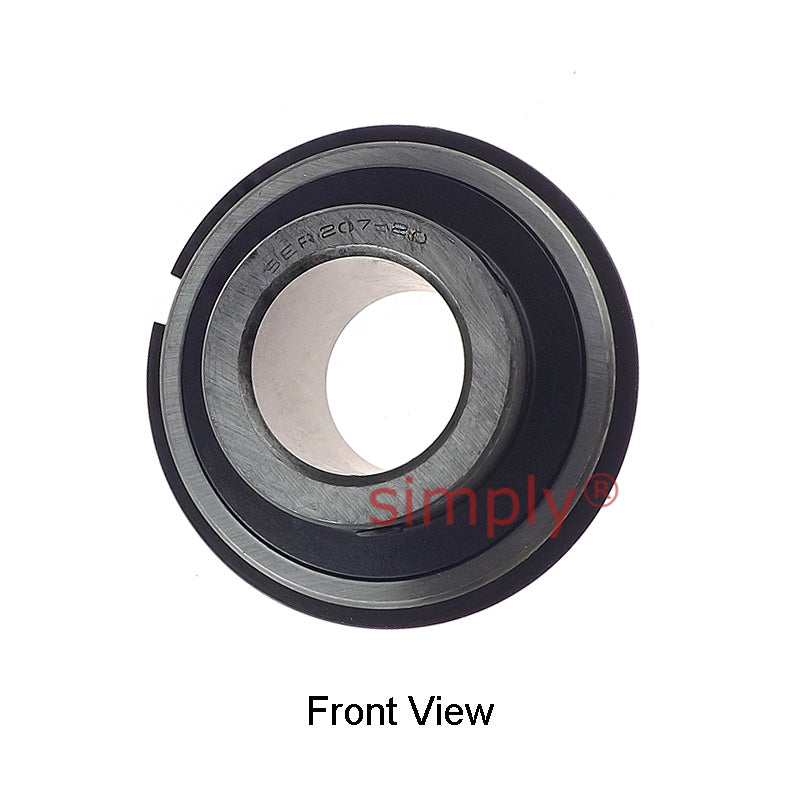

SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
- Regular price
- €19.55 ex VAT
- Sale price
- €19,55
- Regular price
-
In stock
Quantity Price Breaks
3
€17.40
4
€16.42
9
€16.23
19
€16.03
49
€15.84
99
€15.64
499
€14.66
999
€14.47
1999
€14.27
2999
€14.08
4999
€13.69
SKU:
SER.207-20
SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
- Regular price
- €19.55 ex VAT
- Sale price
- €19,55
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-1/4 inch |
| D | = | 72mm |
| Bi | = | 42.9mm |
| Be | = | 23.8mm |
| n | = | 17.5mm |
| m | = | 25.4mm |
| E | = | 18.62mm |
| a | = | 1.65mm |
| h | = | 5.6mm |
| R | = | 6.72mm |
| J | = | 3.28mm |
| P | = | 78.6mm |
| G | = | 6.5mm |
| Grub screw | = | 5/16" |
| -24UNF | = | Weight |
| 0.56 kg | = | Dynamic load |
| 2020 kgf | = | Static load |
| 1390 kgf | = | Rec max speed |
| 4500 rpm | = | N/A |
