SKU: SER.209

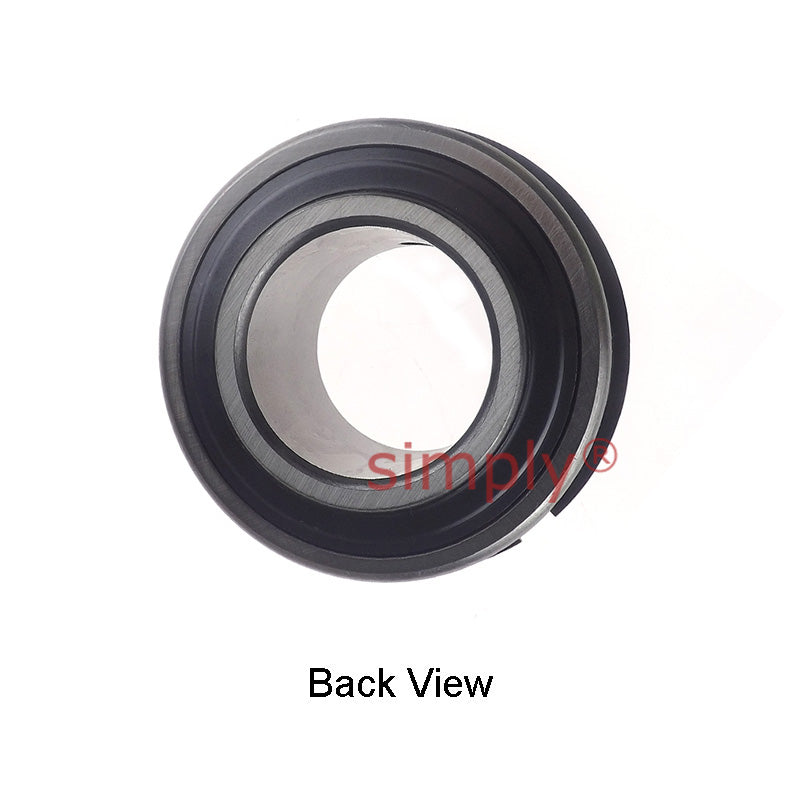

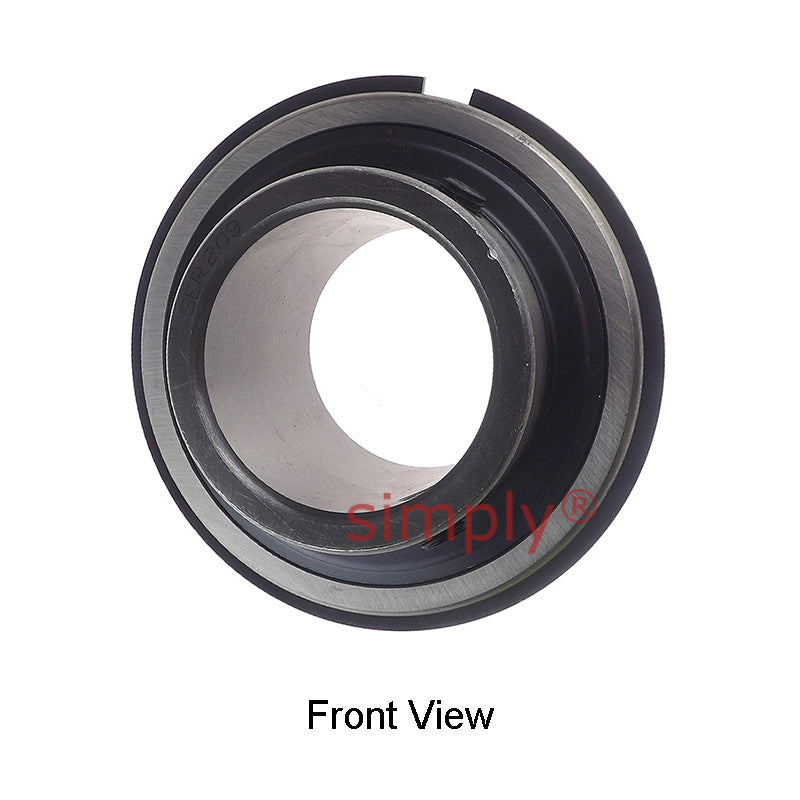

SER209 Metric Bearing Insert and Snap Ring 45mm Bore 85mm Outside Dia
- Regular price
- €27.91 ex VAT
- Sale price
- €27,91
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€24.84
4
€23.44
9
€23.17
19
€22.89
49
€22.61
99
€22.33
499
€20.93
999
€20.65
1999
€20.37
2999
€20.10
4999
€19.54
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 45mm |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 27.8mm |
| n | = | 19mm |
| m | = | 30.2mm |
| E | = | 22.62mm |
| a | = | 1.65mm |
| h | = | 6.4mm |
| R | = | 8.72mm |
| J | = | 3.28mm |
| P | = | 91.6mm |
| G | = | 8mm |
| Grub screw | = | M8x1.0 |
| Weight | = | 0.90 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
