SKU: SER.210-30

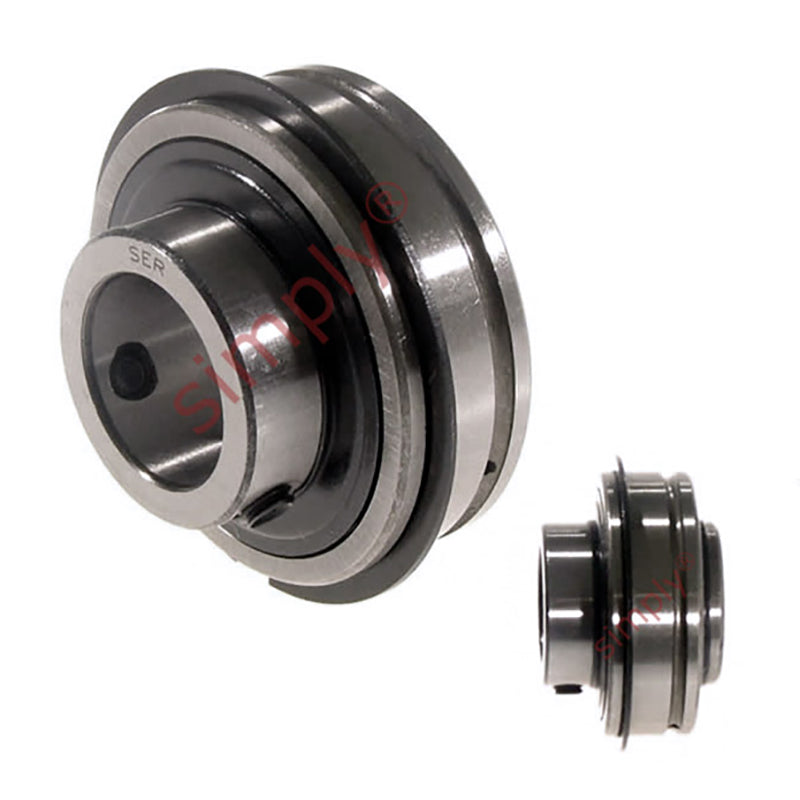

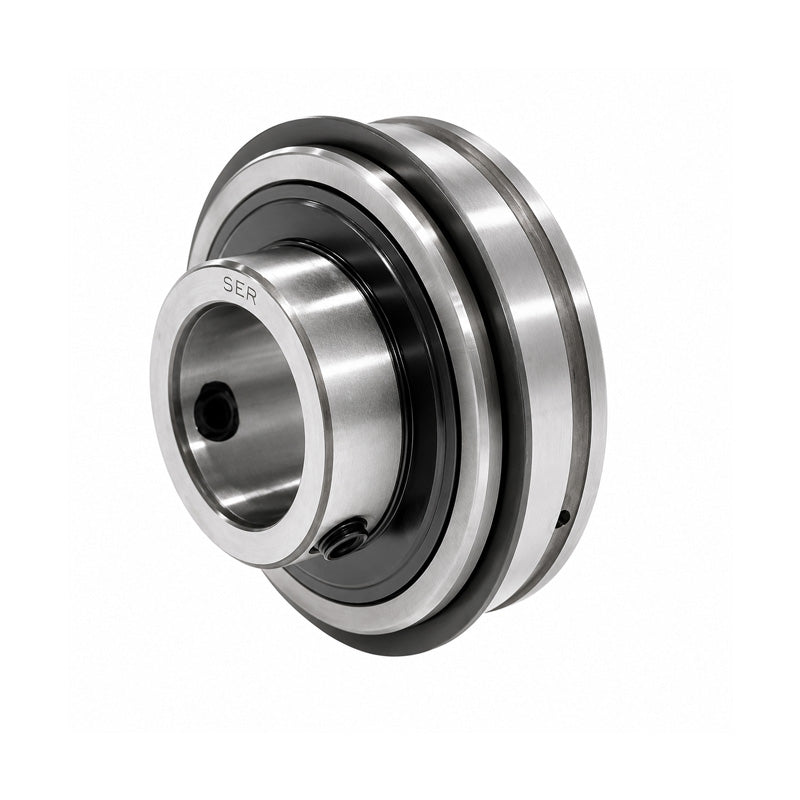

SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia
- Regular price
- €39.98 ex VAT
- Sale price
- €39,98
- Regular price
-
In stock
Quantity Price Breaks
3
€35.58
4
€33.58
9
€33.18
19
€32.78
49
€32.38
99
€31.98
499
€29.99
999
€29.59
1999
€29.19
2999
€28.79
4999
€27.99
SKU:
SER.210-30
SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia
- Regular price
- €39.98 ex VAT
- Sale price
- €39,98
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-7/8 inch |
| D | = | 90mm |
| Bi | = | 51.6mm |
| Be | = | 28.6mm |
| n | = | 19mm |
| m | = | 32.6mm |
| E | = | 22.62mm |
| a | = | 2.41mm |
| h | = | 7.5mm |
| R | = | 8.32mm |
| J | = | 3.28mm |
| P | = | 96.5mm |
| G | = | 9.5mm |
| Grub screw | = | 3/8" |
| -24UNF | = | Weight |
| 0.93 kg | = | Dynamic load |
| 2750 kgf | = | Static load |
| 2020 kgf | = | N/A |
