SKU: SER.211-32

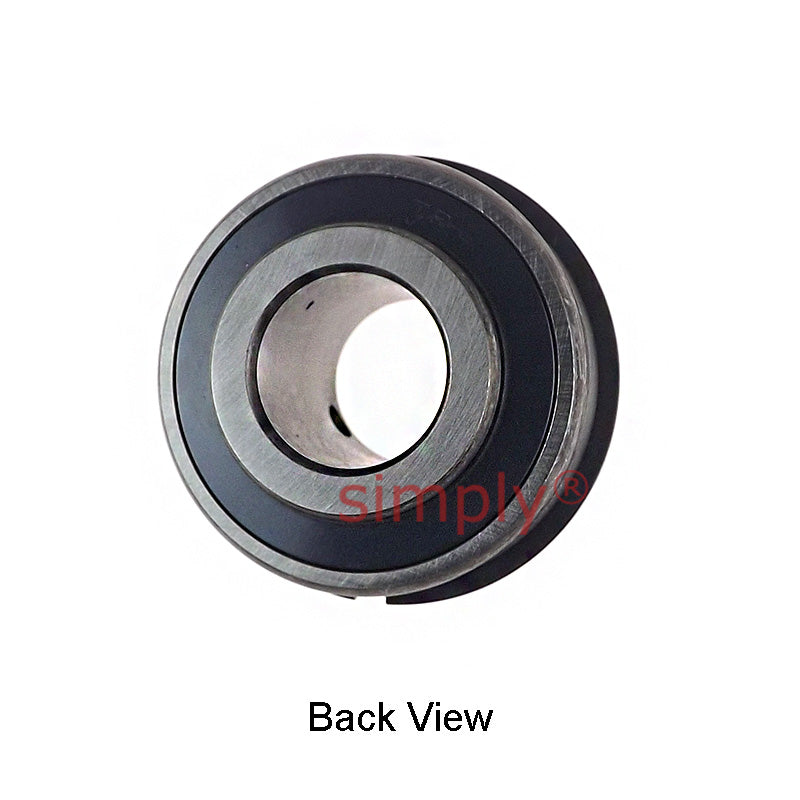

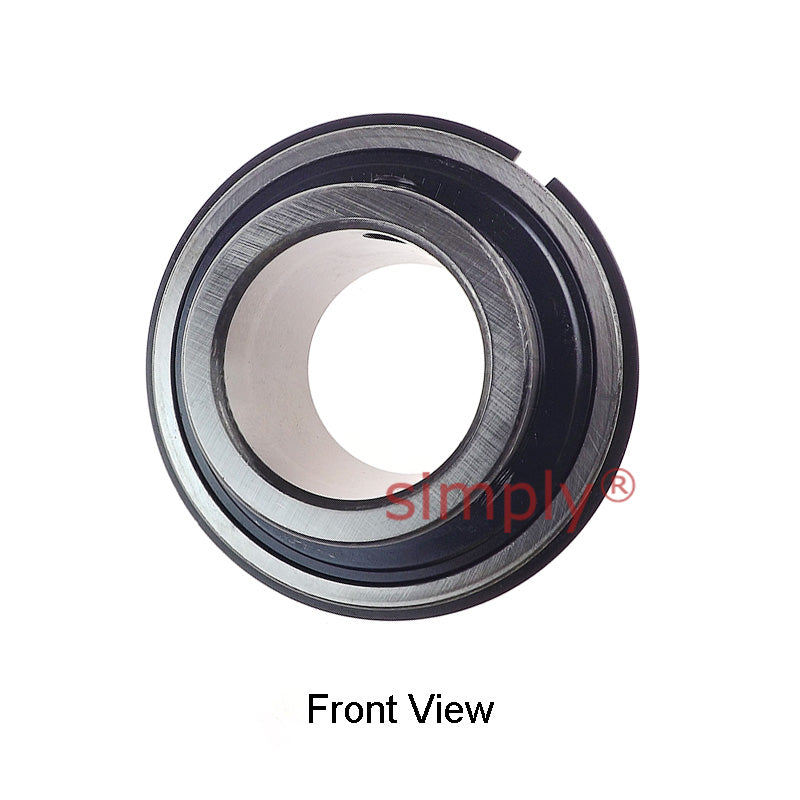

SER211-32 Imperial Bearing Insert and Snap Ring 2 inch Bore 100mm Outside Dia
- Regular price
- €39.82 ex VAT
- Sale price
- €39,82
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€35.44
4
€33.45
9
€33.05
19
€32.65
49
€32.25
99
€31.86
499
€29.87
999
€29.47
1999
€29.07
2999
€28.67
4999
€27.87
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2 inch |
| D | = | 100mm |
| Bi | = | 55.6mm |
| Be | = | 30.2mm |
| n | = | 22.2mm |
| m | = | 33.4mm |
| E | = | 24.22mm |
| a | = | 2.41mm |
| h | = | 7.5mm |
| R | = | 9.12mm |
| J | = | 3.28mm |
| P | = | 106.5mm |
| G | = | 9.5mm |
| Grub screw | = | 3/8" |
| -24UNF | = | Weight |
| 1.28 kg | = | Dynamic load |
| 3400 kgf | = | Static load |
| 2550 kgf | = | N/A |
