SKU: SFT1.3/4EC-RHP

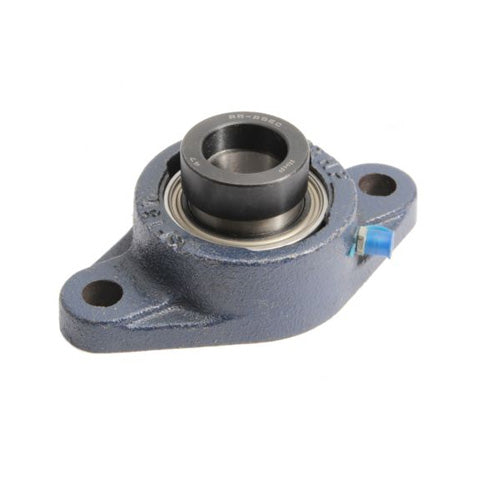

RHP SFT1-3/4EC Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert
- Regular price
- €95.38 ex VAT
- Sale price
- €95,38
- Regular price
-
Not in stock
Quantity Price Breaks
10
€84.89
20
€80.12
30
€79.17
40
€78.21
50
€77.26
75
€76.30
100
€71.54
200
€70.58
250
€69.63
500
€68.67
1000
€66.77
SKU:
SFT1.3/4EC-RHP
RHP SFT1-3/4EC Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert
- Regular price
- €95.38 ex VAT
- Sale price
- €95,38
- Regular price
-
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-3/4 inch |
| L | = | 4.374 inch |
| H | = | 7.063 inch |
| J | = | 5.846 inch |
| G | = | 0.625 inch |
| A | = | 1.39 inch |
| A2 | = | 2.229 inch |
| A4 | = | 0.563 inch |
| B2 | = | 1.718 inch |
| s1 | = | 0.435 inch |
| d2 | = | 2.5 inch |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1245-1-3/4ECG+insonly" |
| > | = | 1245-1-3/4ECG Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
