SKU: SFT1-RHP

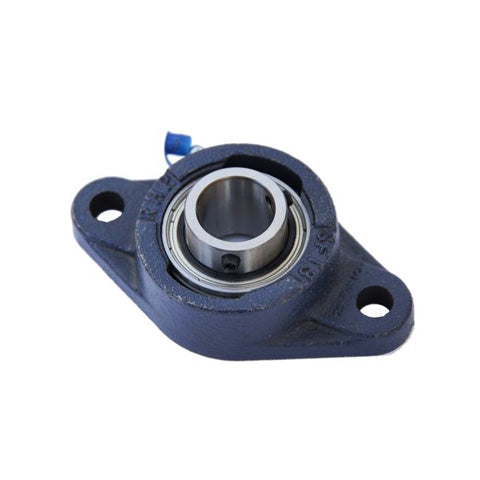

RHP SFT1 Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
- Regular price
- €47.12 ex VAT
- Sale price
- €47,12
- Regular price
-
In stock
Quantity Price Breaks
10
€41.94
20
€39.58
30
€39.11
40
€38.64
50
€38.17
75
€37.70
100
€35.34
200
€34.87
250
€34.40
500
€33.93
1000
€32.98
SKU:
SFT1-RHP
RHP SFT1 Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
- Regular price
- €47.12 ex VAT
- Sale price
- €47,12
- Regular price
-
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1 inch |
| L | = | 2.689 inch |
| H | = | 4.874 inch |
| J | = | 3.898 inch |
| G | = | 0.4375 inch |
| A | = | 1.126 inch |
| A1 | = | 1.529 inch |
| A4 | = | 0.437 inch |
| B | = | 1.343 inch |
| s | = | 0.564 inch |
| d1 | = | 1.339 inch |
| Dynamic load Cr | = | 14000 N |
| Static load Cor | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1025-1G+insonly" |
| > | = | 1025-1G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
