SKU: SFT50-RHP

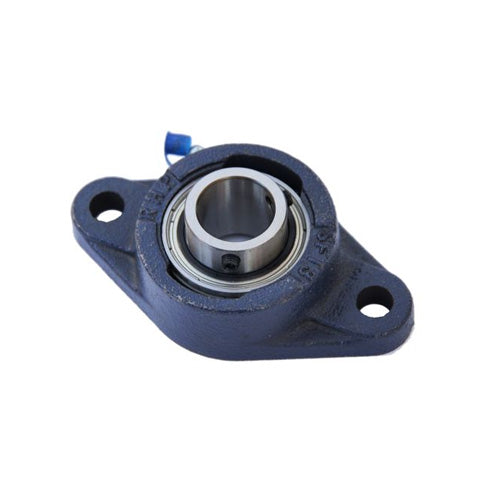

RHP SFT50 Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
- Regular price
- €90.19 ex VAT
- Sale price
- €90,19
- Regular price
-
In stock
Quantity Price Breaks
10
€80.27
20
€75.76
30
€74.86
40
€73.96
50
€73.05
75
€72.15
100
€67.64
200
€66.74
250
€65.84
500
€64.94
1000
€63.13
SKU:
SFT50-RHP
RHP SFT50 Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
- Regular price
- €90.19 ex VAT
- Sale price
- €90,19
- Regular price
-
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 50mm |
| L | = | 115.9mm |
| H | = | 188.9mm |
| J | = | 157mm |
| G | = | 16mm |
| A | = | 39.7mm |
| A1 | = | 60.53mm |
| A4 | = | 14.3mm |
| B | = | 51.59mm |
| s | = | 19.1mm |
| d1 | = | 62.2mm |
| Dynamic load Cr | = | 35000 N |
| Static load Cor | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-50G+insonly" |
| > | = | 1050-50G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
