SKU: SFT50DEC-RHP

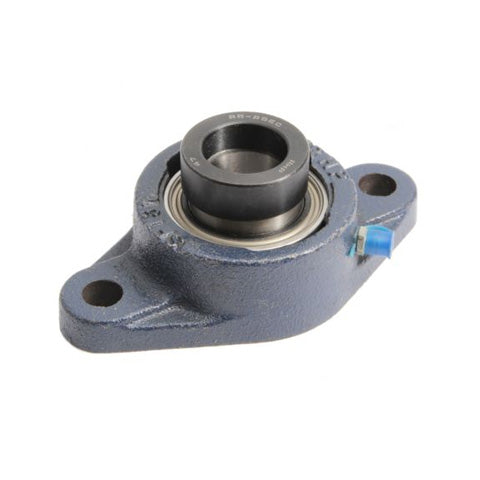

RHP SFT50DEC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
- Regular price
- €110.74 ex VAT
- Sale price
- €110,74
- Regular price
-
Not in stock
Quantity Price Breaks
10
€98.56
20
€93.02
30
€91.91
40
€90.81
50
€89.70
75
€88.59
100
€83.06
200
€81.95
250
€80.84
500
€79.73
1000
€77.52
SKU:
SFT50DEC-RHP
RHP SFT50DEC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
- Regular price
- €110.74 ex VAT
- Sale price
- €110,74
- Regular price
-
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

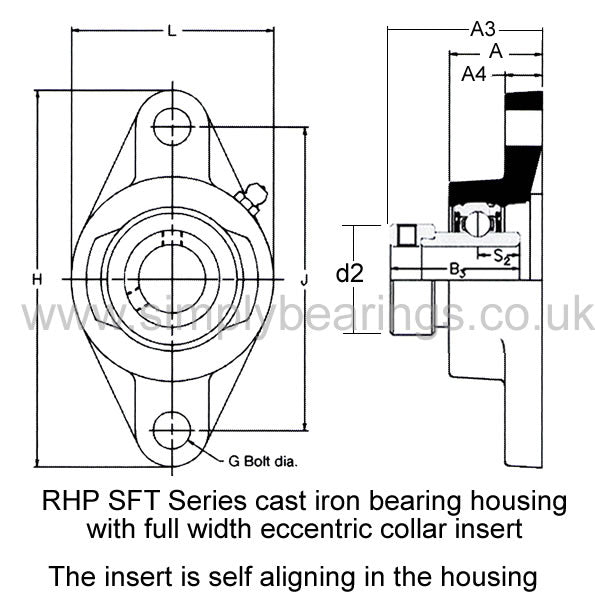

Technical
| Bore | = | 50mm |
| L | = | 115.9mm |
| H | = | 188.9mm |
| J | = | 157mm |
| G | = | 16mm |
| A | = | 39.7mm |
| A3 | = | 66.07mm |
| A4 | = | 14.3mm |
| B3 | = | 62.7mm |
| s2 | = | 24.65mm |
| d2 | = | 69.85mm |
| Dynamic load Cr | = | 35000 N |
| Static load Cor | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-50DECG+insonly" |
| > | = | 1050-50DECG Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
