SKU: SIKB10F/VZ019-SKF

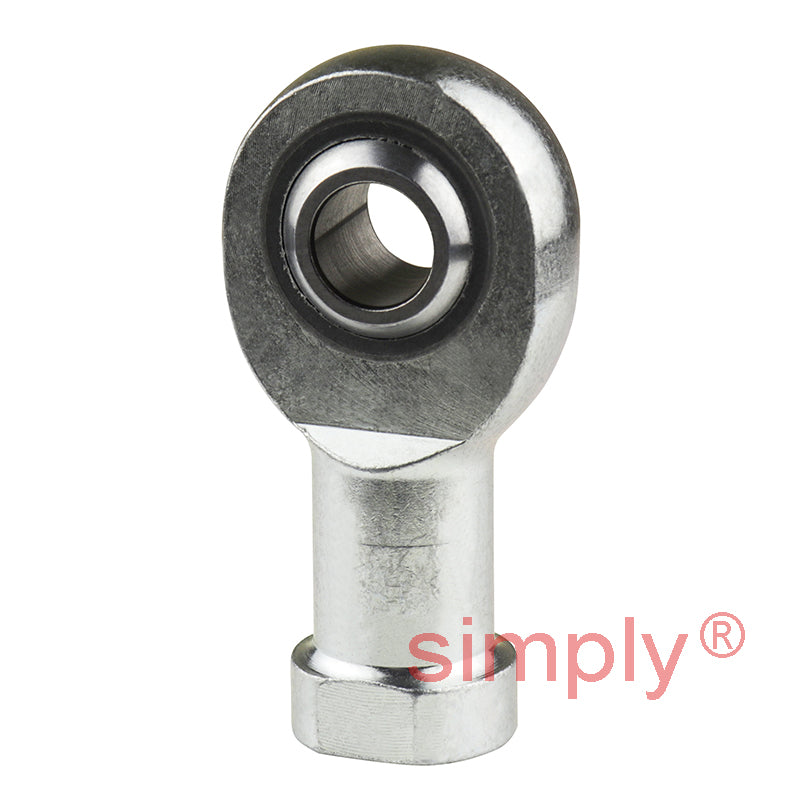

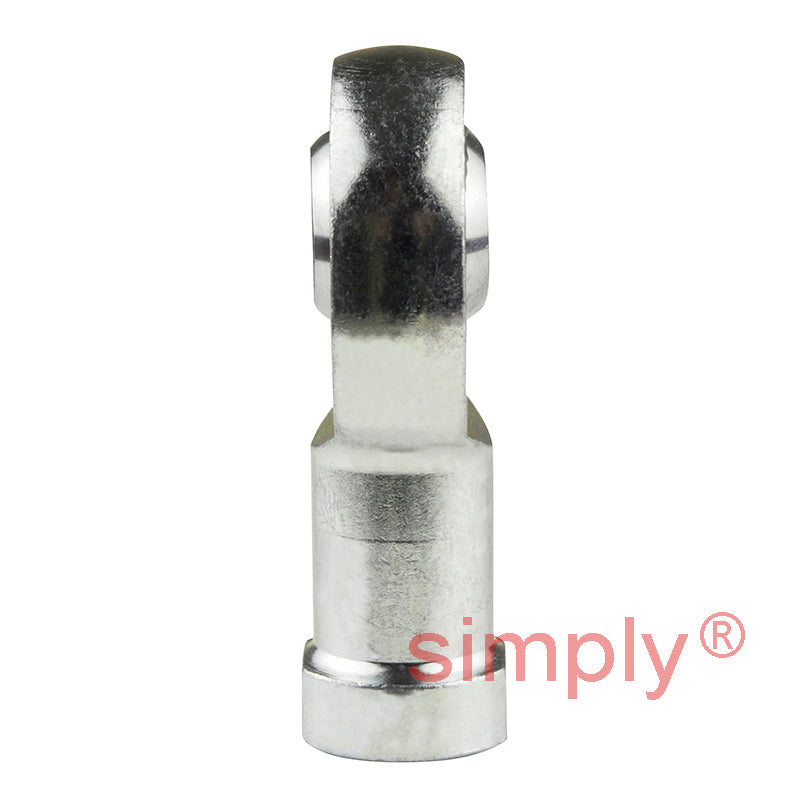

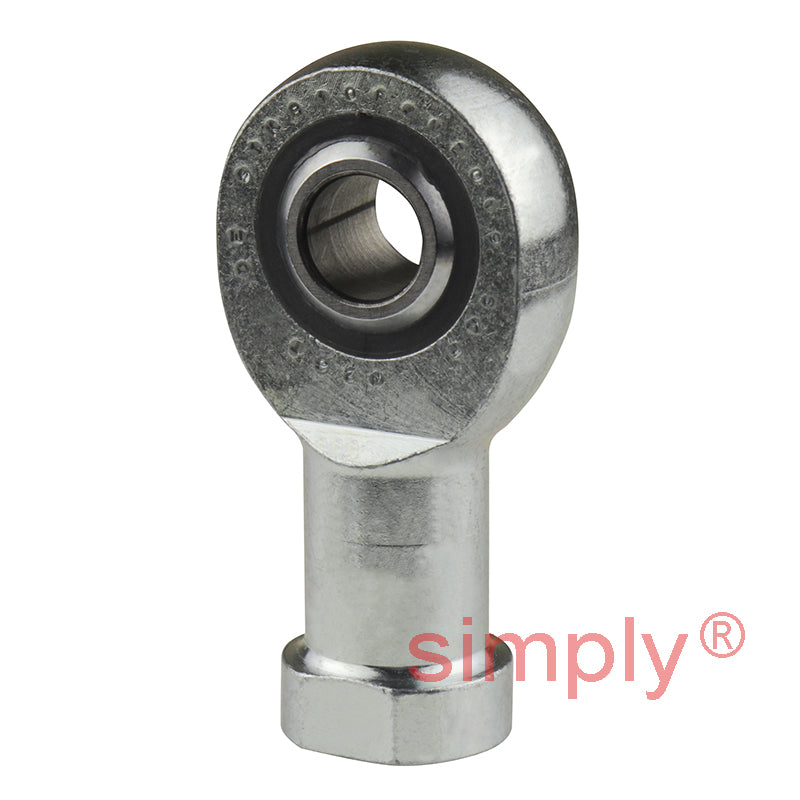

SKF SIKB10FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10x1.25 Thread
- Regular price
- €28.67 ex VAT
- Sale price
- €28,67
- Regular price
-
In stock
Quantity Price Breaks
10+
€25.52
19+
€24.08
29+
€23.80
39+
€23.51
49+
€23.22
74+
€22.94
99+
€21.50
199+
€21.22
249+
€20.93
499+
€20.64
999+
€20.07
SKU:
SIKB10F/VZ019-SKF
SKF SIKB10FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10x1.25 Thread
- Regular price
- €28.67 ex VAT
- Sale price
- €28,67
- Regular price
-
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
