SKU: SIKB12F-SKF

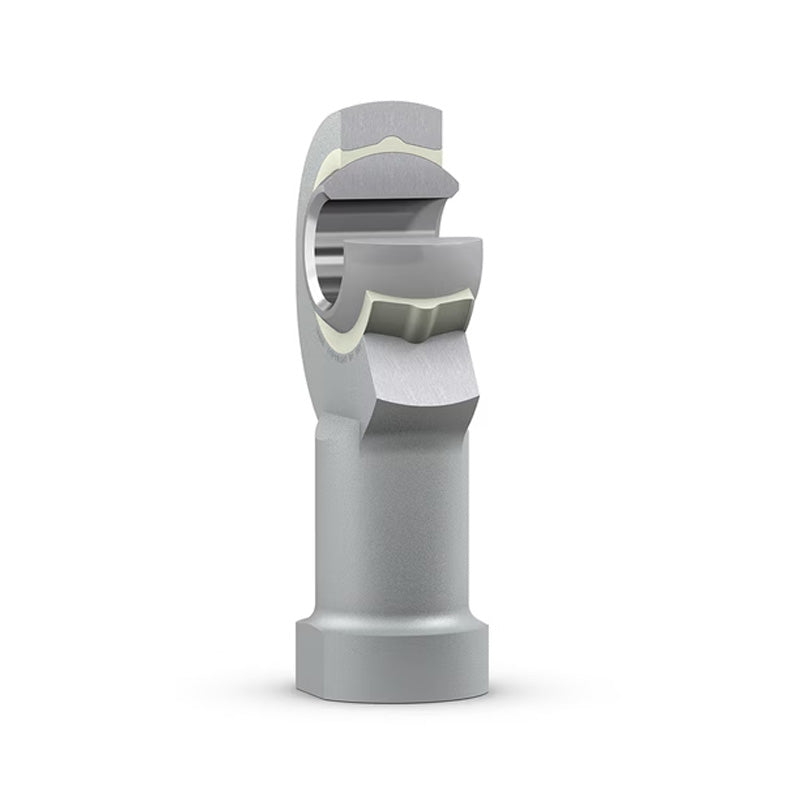

SKF SIKB12F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12 Thread
- Regular price
- €57.16 ex VAT
- Sale price
- €57,16
- Regular price
-
In stock
Quantity Price Breaks
10+
€50.87
19+
€48.01
29+
€47.44
39+
€46.87
49+
€46.30
74+
€45.73
99+
€42.87
199+
€42.30
249+
€41.73
499+
€41.16
999+
€40.01
SKU:
SIKB12F-SKF
SKF SIKB12F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M12 Thread
- Regular price
- €57.16 ex VAT
- Sale price
- €57,16
- Regular price
-
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
