SKU: SL182_IMP_NAK

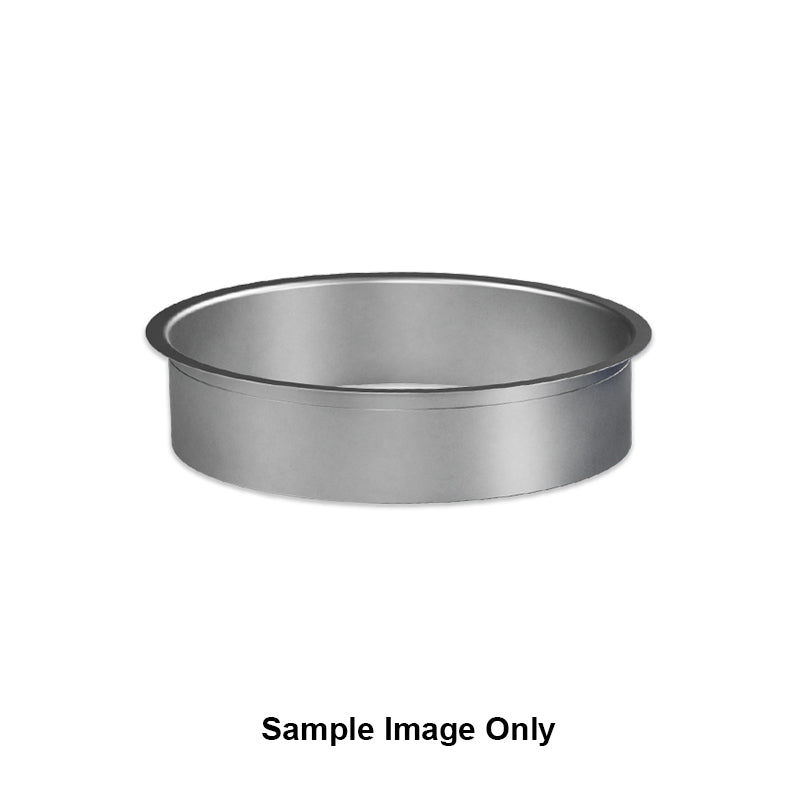

NAK SL182 Hardened Stainless Sleeve for Shafts 3.618-3.624 inch - Allow 7-10 Days
- Regular price
- €40.03 ex VAT
- Sale price
- €40,03
- Regular price
-
Not in stock
Quantity Price Breaks
10
€35.63
19
€33.63
29
€33.22
39
€32.82
49
€32.42
74
€32.02
99
€30.02
199
€29.62
249
€29.22
499
€28.82
999
€28.02
SKU:
SL182_IMP_NAK
NAK SL182 Hardened Stainless Sleeve for Shafts 3.618-3.624 inch - Allow 7-10 Days
- Regular price
- €40.03 ex VAT
- Sale price
- €40,03
- Regular price
-
Description

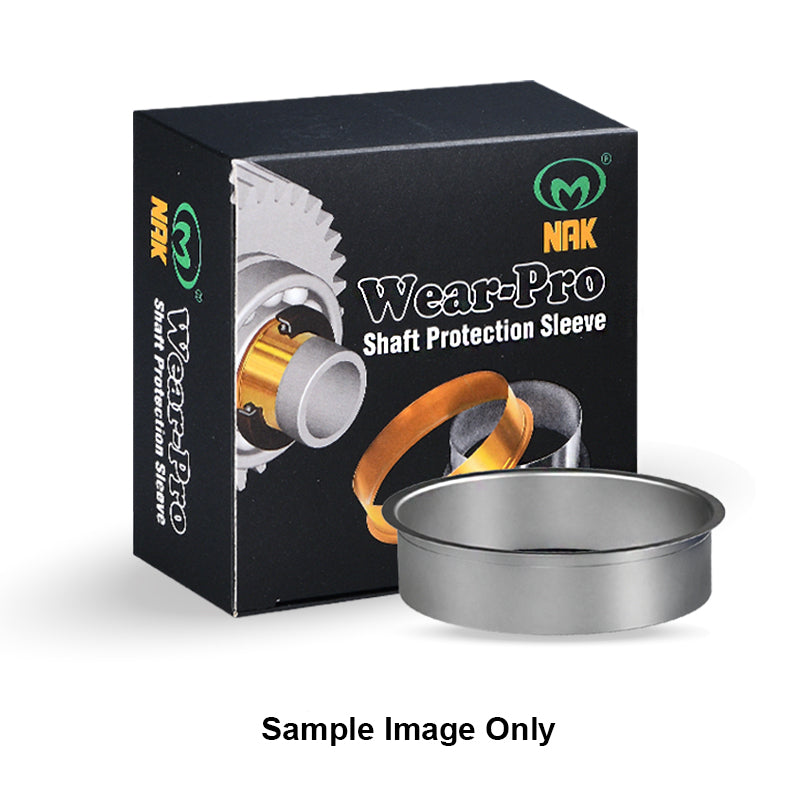

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical
| Shaft Diameter Range (A) | = | 3.618-3.624 inch |
| Nominal Shaft Diameter (A) | = | 3.621 inch |
| Flange Diameter (D) | = | 4.031 inch |
| Width on Shaft (X) | = | 0.811 inch |
| Overall Width (Y) | = | 1 inch |
| Installation Depth (Z) | = | 1.752 inch |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
