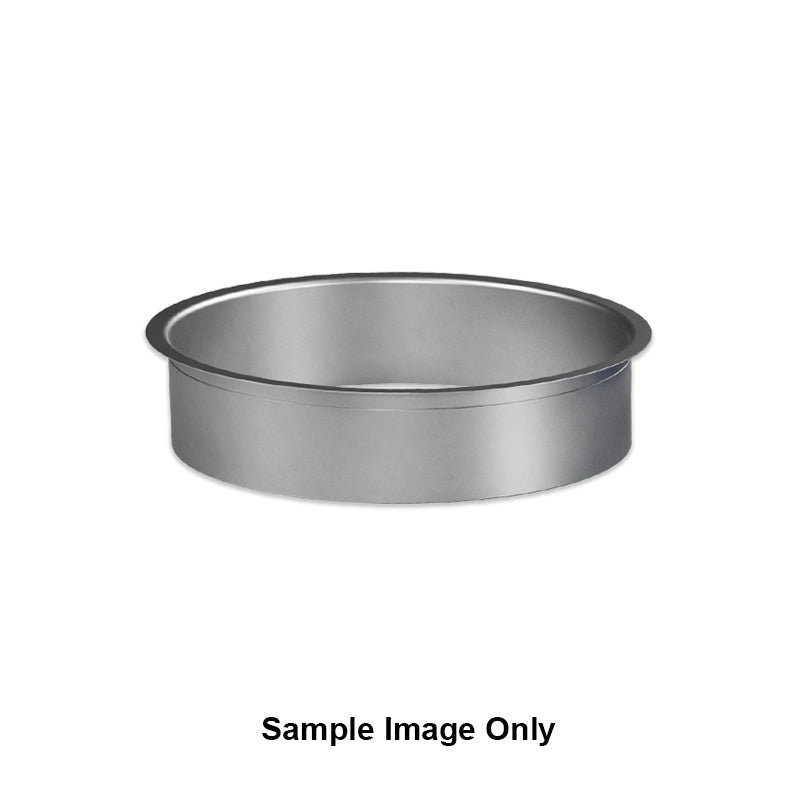

NAK SL266 Hardened Stainless Sleeve for Shafts 201.50-201.75mm - Allow 7-10 Days
- Regular price
- €104.62 ex VAT
- Sale price
- €104,62
- Regular price
-
Not in stock
Quantity Price Breaks
10
€93.11
19
€87.88
29
€86.83
39
€85.79
49
€84.74
74
€83.70
99
€78.47
199
€77.42
249
€76.37
499
€75.33
999
€73.23
SKU:
SL266_NAK
NAK SL266 Hardened Stainless Sleeve for Shafts 201.50-201.75mm - Allow 7-10 Days
- Regular price
- €104.62 ex VAT
- Sale price
- €104,62
- Regular price
-
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Technical
| Shaft Diameter Range (A) | = | 201.50-201.75mm |
| Nominal Shaft Diameter (A) | = | 201.63mm |
| Flange Diameter (D) | = | 212.7mm |
| Width on Shaft (X) | = | 25.4mm |
| Overall Width (Y) | = | 31.8mm |
| Installation Depth (Z) | = | 31.8mm |
| Flange Diameter (D) Tolerance | = | 1.6mm |
| Width on Shaft (X) Tolerance | = | 0.8mm |
| Overall Width (Y) Tolerance | = | 0.8mm |
