SKU: SLC1.1/4DEC-RHP
RHP SLC1-1/4DEC Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
- Regular price
- €79.08 ex VAT
- Sale price
- €79,08
- Regular price
-
ex VAT
Quantity Price Breaks
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |

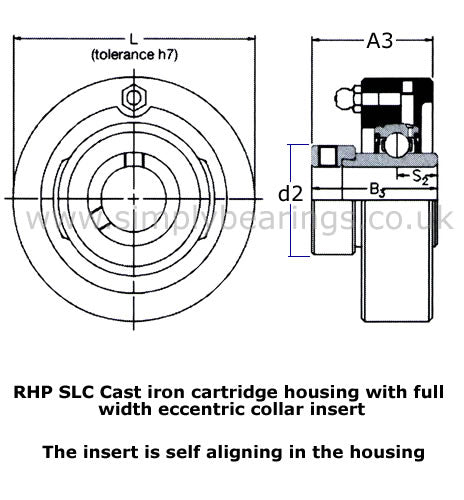

Technical
| Bore | = | 1-1/4 inch |
| L | = | 3.876 inch |
| A | = | 1.219 inch |
| A3 | = | 1.881 inch |
| B3 | = | 2015 inch |
| s2 | = | 0.744 inch |
| d2 | = | 2.188 inch |
| Dynamic load Cr | = | 25700 N |
| Static load Cor | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-1-1/4DECG+insonly" |
| > | = | 1035-1-1/4DECG Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
