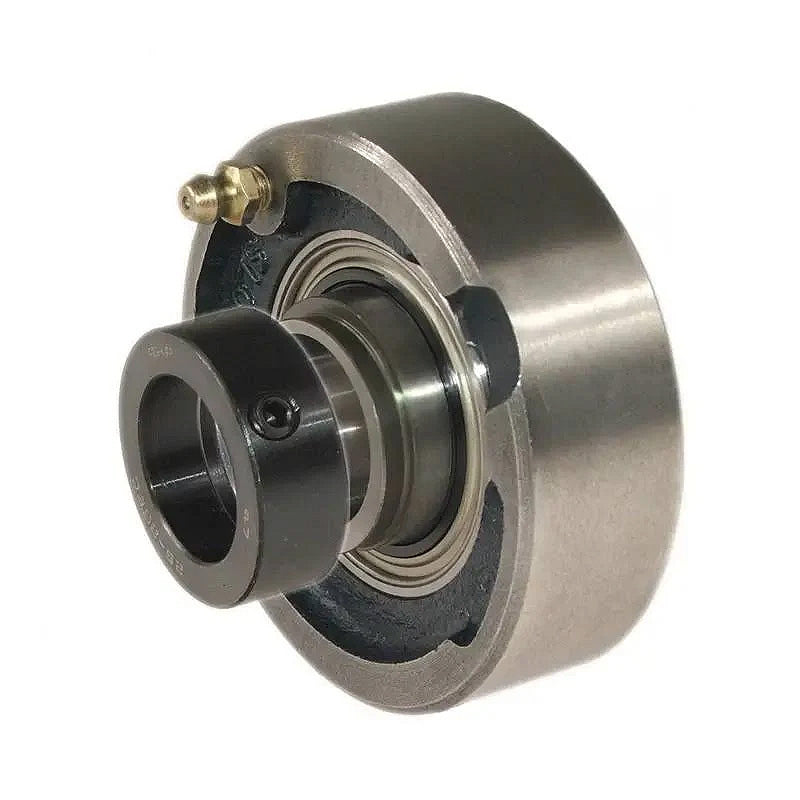

RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter

SKU: SLC1.3/4DEC-RHP

RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter

€104.64 ex VAT
€104,64
ex VAT
Not in stock

Quantity Price Breaks

10 €93.13
20 €87.90
30 €86.85
40 €85.80
50 €84.76
75 €83.71
100 €78.48
200 €77.43
250 €76.39
500 €75.34
1000 €73.25
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter
SKU: SLC1.3/4DEC-RHP

RHP SLC1-3/4DEC Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 111.15mm Outside Diameter

€104.64 ex VAT
€104,64
ex VAT

Description

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Technical

Bore = 1-3/4 inch
L = 4.376 inch
A = 1.437 inch
A3 = 2.093 inch
B3 = 2.218 inch
s2 = 0.845 inch
d2 = 2.5 inch
Dynamic load Cr = 32500 N
Static load Cor = 20500 N
Rec max speed = 3700 rpm
Weight = 2.1 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1045-1-3/4DECG+insonly"
> = 1045-1-3/4DECG Click Here<
/a> =
Casting group = 7
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
