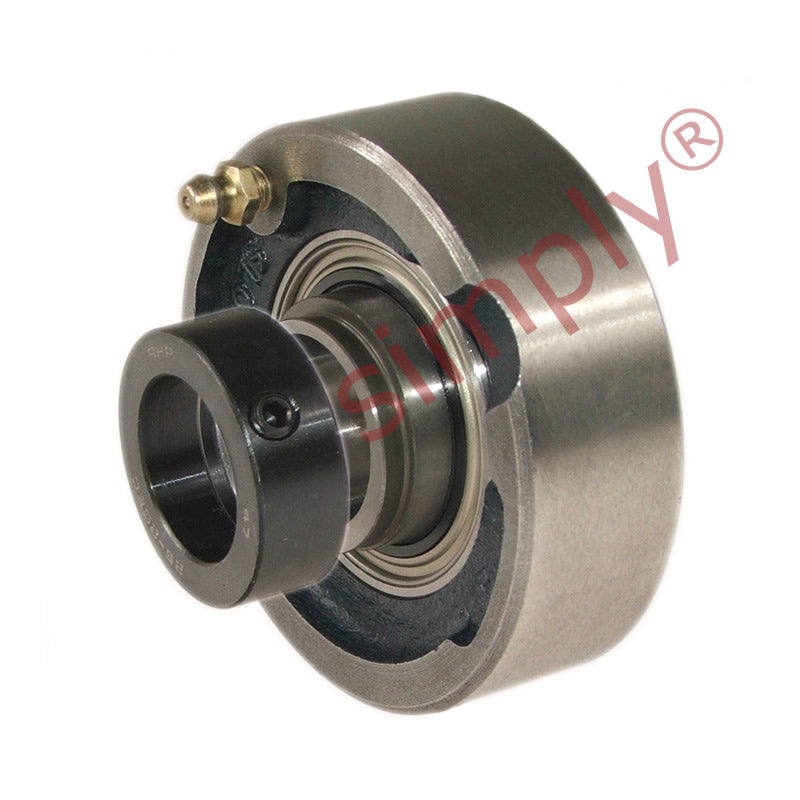

RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter

SKU: SLC1EC-RHP

RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter

€48.02 ex VAT
€48,02
ex VAT
Not in stock

Quantity Price Breaks

10 €42.74
20 €40.34
30 €39.86
40 €39.38
50 €38.90
75 €38.42
100 €36.02
200 €35.53
250 €35.05
500 €34.57
1000 €33.61
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
SKU: SLC1EC-RHP

RHP SLC1EC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter

€48.02 ex VAT
€48,02
ex VAT

Description

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Technical

Bore = 1 inch
L = 3.126 inch
A = 1.031 inch
A2 = 1.438 inch
B2 = 1.217 inch
s1 = 0.298 inch
d2 = 1.5 inch
Dynamic load Cr = 14000 N
Static load Cor = 7880 N
Rec max speed = 6250 rpm
Weight = 0.8 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1225-1ECG+insonly"
> = 1225-1ECG Click Here<
/a> =
Casting group = 3
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
