SKU: SLC20A-RHP

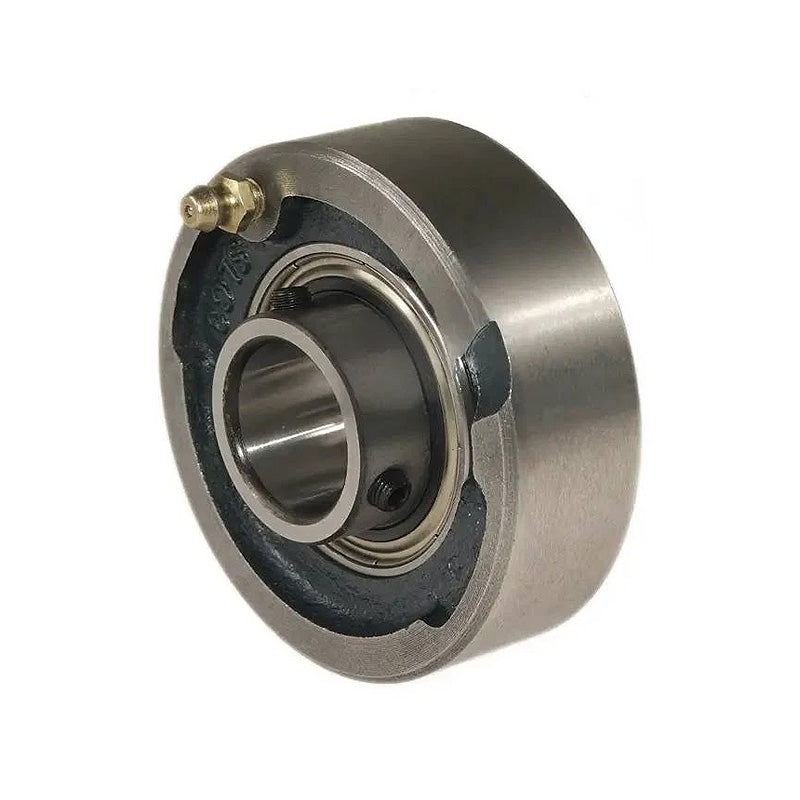

RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
- Regular price
- €43.84 ex VAT
- Sale price
- €43,84
- Regular price
-
Quantity Price Breaks
RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
- Regular price
- €43.84 ex VAT
- Sale price
- €43,84
- Regular price
-
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
Technical
| Bore | = | 20mm |
| L | = | 74.637mm |
| A | = | 22.22mm |
| A1 | = | 29.39mm |
| A2 | = | 34.54mm |
| A3 | = | 37.67mm |
| B | = | 30.96mm |
| B1 | = | 25.77mm |
| B2 | = | 30.92mm |
| B3 | = | 43.62mm |
| s | = | 12.75mm |
| s1 | = | 7.56mm |
| s2 | = | 17.12mm |
| d1 | = | 28.5mm |
| d2 | = | 33.3mm |
| Dynamic load Cr | = | 12800 N |
| Static load Cor | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.7 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1220-20AG+insonly" |
| > | = | 1220-20AG Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
