SKU: SLC2DEC-RHP

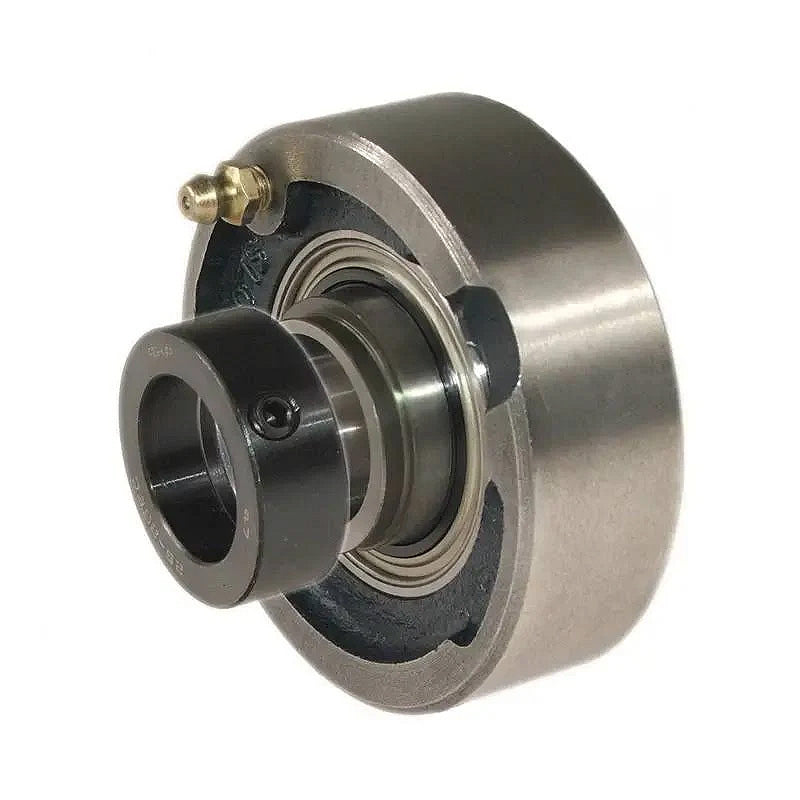

RHP SLC2DEC Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
- Regular price
- €170.51 ex VAT
- Sale price
- €170,51
- Regular price
-
Quantity Price Breaks
RHP SLC2DEC Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
- Regular price
- €170.51 ex VAT
- Sale price
- €170,51
- Regular price
-
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
Technical
| Bore | = | 2 inch |
| L | = | 4.9385 inch |
| A | = | 1.594 inch |
| A3 | = | 2.513 inch |
| B3 | = | 2.813 inch |
| s2 | = | 1.095 inch |
| d2 | = | 3 inch |
| Dynamic load Cr | = | 43500 N |
| Static load Cor | = | 29200 N |
| Rec max speed | = | 3100 rpm |
| Weight | = | 2.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1055-2DECG+insonly" |
| > | = | 1055-2DECG Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
