SKU: SLC30A-RHP

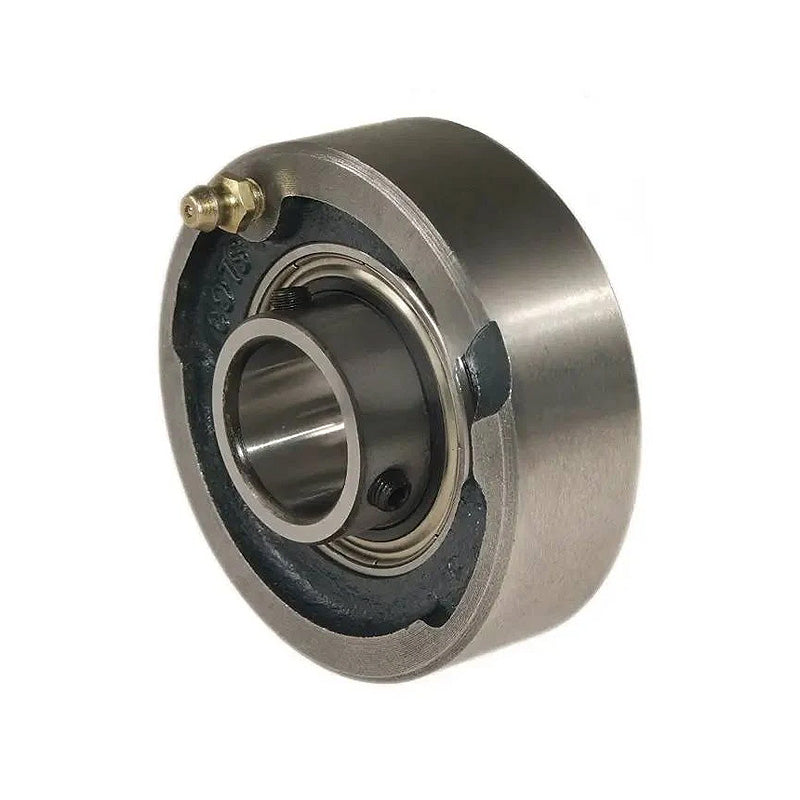

RHP SLC30A Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
- Regular price
- €54.49 ex VAT
- Sale price
- €54,49
- Regular price
-
Quantity Price Breaks
RHP SLC30A Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
- Regular price
- €54.49 ex VAT
- Sale price
- €54,49
- Regular price
-
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |

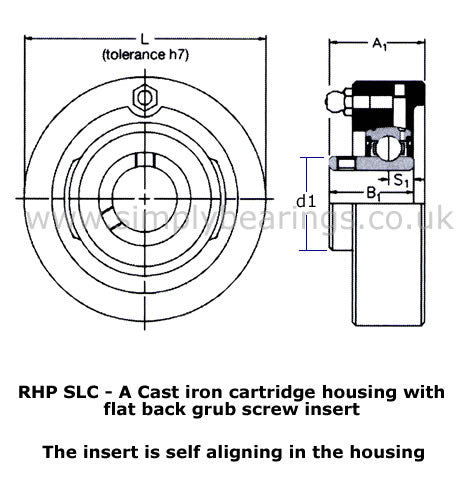

Technical
| Bore | = | 30mm |
| L | = | 88.925mm |
| A | = | 27.78mm |
| A1 | = | 36.12mm |
| A2 | = | 40.56mm |
| A3 | = | 43.99mm |
| B | = | 38.1mm |
| B1 | = | 31.21mm |
| B2 | = | 35.68mm |
| B3 | = | 48.42mm |
| s | = | 15.93mm |
| s1 | = | 9.04mm |
| s2 | = | 18.32mm |
| d1 | = | 40mm |
| d2 | = | 44.45mm |
| Dynamic load Cr | = | 19500 N |
| Static load Cor | = | 11300 N |
| Rec max speed | = | 5300 rpm |
| Weight | = | 1.1 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1230-30AG+insonly" |
| > | = | 1230-30AG Click Here< |
| /a> | = | |
| Casting group | = | 4 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
