RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter

SKU: SLC30EC-RHP

RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter

€57.19 ex VAT
€57,19
ex VAT
Not in stock

Quantity Price Breaks

10 €50.90
20 €48.04
30 €47.47
40 €46.90
50 €46.32
75 €45.75
100 €42.89
200 €42.32
250 €41.75
500 €41.18
1000 €40.03
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
SKU: SLC30EC-RHP

RHP SLC30EC Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter

€57.19 ex VAT
€57,19
ex VAT

Description

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

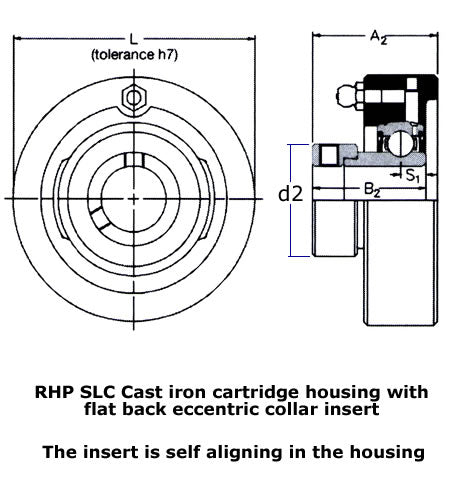

Technical

Bore = 30mm
L = 88.925mm
A = 27.78mm
A2 = 40.56mm
B2 = 35.68mm
s1 = 9.04mm
d2 = 44.45mm
Dynamic load Cr = 19500 N
Static load Cor = 11300 N
Rec max speed = 5300 rpm
Weight = 1.1 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1230-30ECG+insonly"
> = 1230-30ECG Click Here<
/a> =
Casting group = 4
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
