SKU: SLC40EC-RHP
RHP SLC40EC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
- Regular price
- €81.24 ex VAT
- Sale price
- €81,24
- Regular price
-
Quantity Price Breaks
RHP SLC40EC Cast Iron Cartridge Unit with 40mm Bore Insert 106.39mm Outside Diameter
- Regular price
- €81.24 ex VAT
- Sale price
- €81,24
- Regular price
-
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |

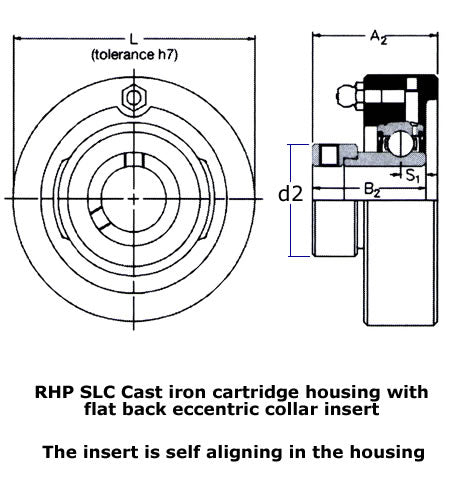

Technical
| Bore | = | 40mm |
| L | = | 106.387mm |
| A | = | 37.31mm |
| A2 | = | 51.28mm |
| B2 | = | 43.64mm |
| s1 | = | 11.05mm |
| d2 | = | 60.3mm |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1240-40ECG+insonly" |
| > | = | 1240-40ECG Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
