SKU: SLC45A-RHP
RHP SLC45A Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
- Regular price
- €85.84 ex VAT
- Sale price
- €85,84
- Regular price
-
Quantity Price Breaks
RHP SLC45A Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
- Regular price
- €85.84 ex VAT
- Sale price
- €85,84
- Regular price
-
Description
|

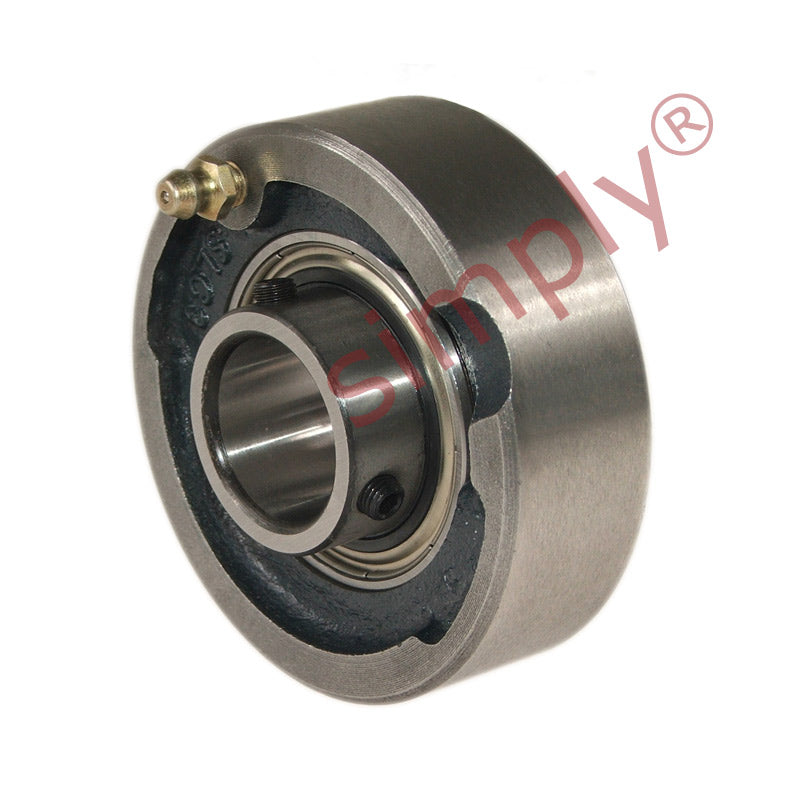

RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
Technical
| Bore | = | 45mm |
| L | = | 111.15mm |
| A | = | 36.51mm |
| A1 | = | 48.44mm |
| A2 | = | 50.88mm |
| A3 | = | 53.16mm |
| B | = | 49.23mm |
| B1 | = | 41.18mm |
| B2 | = | 43.64mm |
| B3 | = | 56.34mm |
| s | = | 19.1mm |
| s1 | = | 11.05mm |
| s2 | = | 21.46mm |
| d1 | = | 57.3mm |
| d2 | = | 63.5mm |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.1 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1245-45AG+insonly" |
| > | = | 1245-45AG Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
