SKU: SLC50DEC-RHP

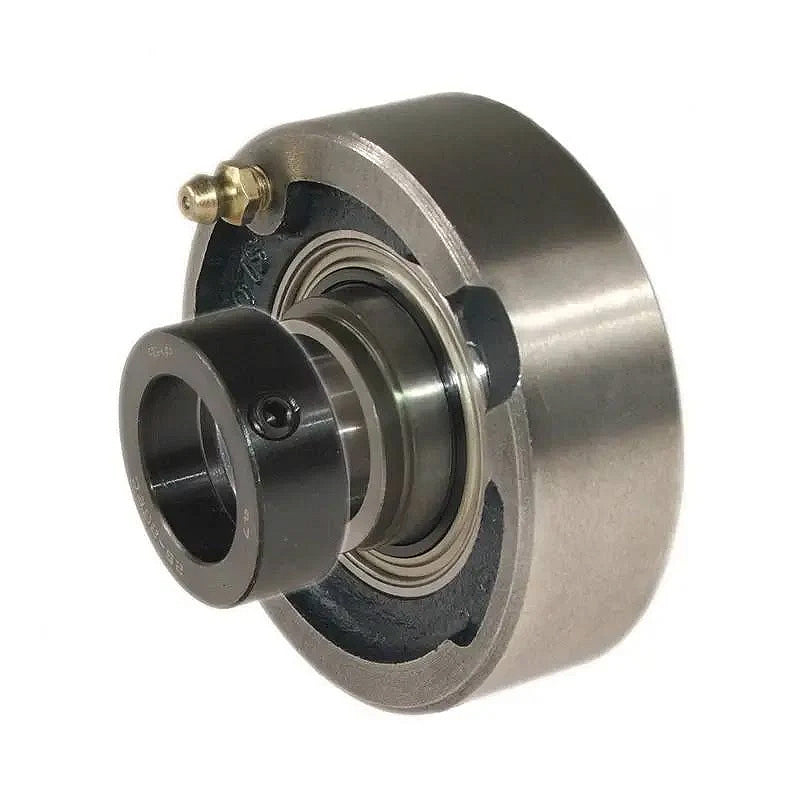

RHP SLC50DEC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
- Regular price
- €116.33 ex VAT
- Sale price
- €116,33
- Regular price
-
Quantity Price Breaks
RHP SLC50DEC Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
- Regular price
- €116.33 ex VAT
- Sale price
- €116,33
- Regular price
-
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
Technical
| Bore | = | 50mm |
| L | = | 115.913mm |
| A | = | 37.31mm |
| A3 | = | 56.72mm |
| B3 | = | 62.7mm |
| s2 | = | 24.65mm |
| d2 | = | 69.85mm |
| Dynamic load Cr | = | 35000 N |
| Static load Cor | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.3 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-50DECG+insonly" |
| > | = | 1050-50DECG Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
