SKU: SLC55-RHP

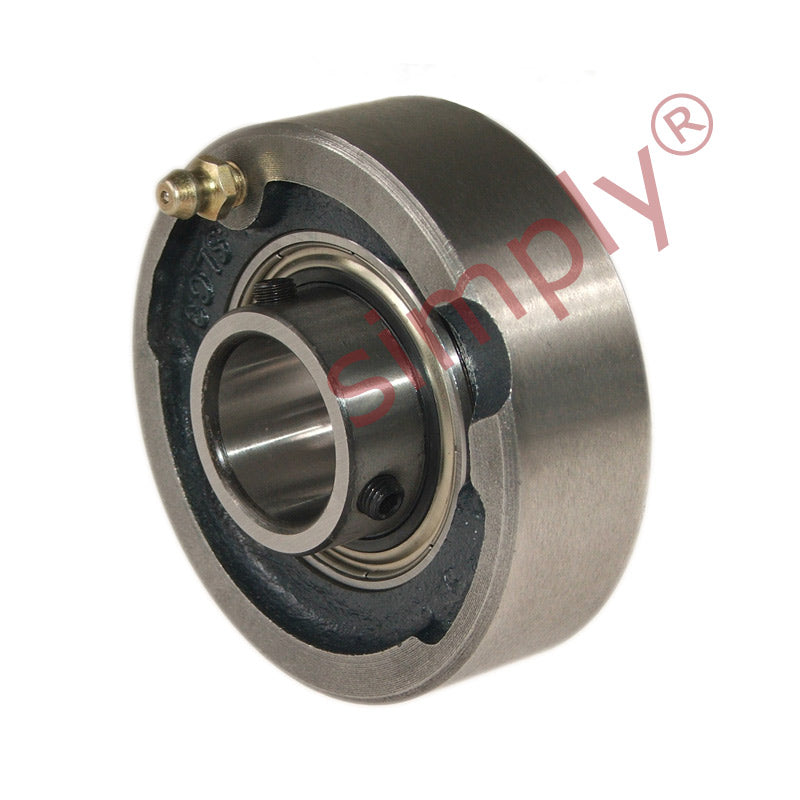

RHP SLC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
- Regular price
- €139.78 ex VAT
- Sale price
- €139,78
- Regular price
-
Quantity Price Breaks
RHP SLC55 Cast Iron Cartridge Unit with 55mm Bore Insert 125.44mm Outside Diameter
- Regular price
- €139.78 ex VAT
- Sale price
- €139,78
- Regular price
-
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |

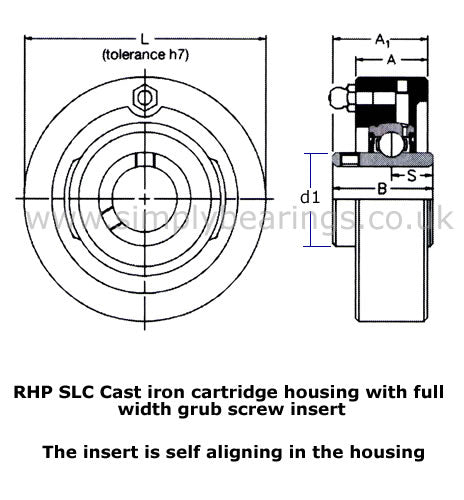

Technical
| Bore | = | 55mm |
| L | = | 125.437mm |
| A | = | 40.48mm |
| A1 | = | 53.57mm |
| B | = | 55.55mm |
| s | = | 22.28mm |
| d1 | = | 68.81mm |
| Dynamic load Cr | = | 43500 N |
| Static load Cor | = | 29200 N |
| Rec max speed | = | 3100 rpm |
| Weight | = | 2.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1055-55G+insonly" |
| > | = | 1055-55G Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
