SKU: SM-UCFC209D1-NTN

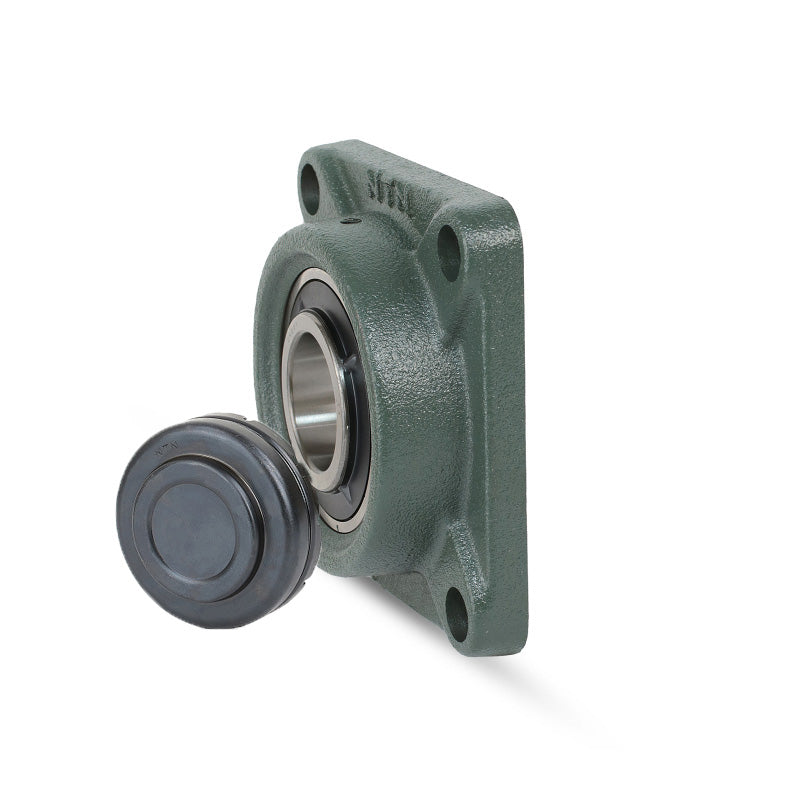

NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
Not in stock
Quantity Price Breaks
3
€50.45
4
€47.61
9
€47.04
19
€46.48
49
€45.91
99
€45.34
499
€42.51
999
€41.94
1999
€41.38
2999
€40.81
4999
€39.68
SKU:
SM-UCFC209D1-NTN
NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| L | = | 160mm |
| J | = | 132mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 93.3mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 10mm | |
| N | = | 16mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 12mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 26mm | |
| A | = | 38mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 105mm | |
| B | = | 49.2mm |
| S | = | 19mm |
| t< | = | sub> |
| 1< | = | /sub> |
| = | 8mm | |
| A< | = | sub> |
| 4< | = | /sub> |
| = | 63mm | |
| Fixing bolt | = | M14 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 36 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 20.4 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.6 kN | |
| --- | = | Unit information |
| Mass | = | 2.7 kg |
