SKU: SPZ.1687.DELTA
SPZ1687 Gates Delta Narrow SPZ-Section V-Belt (Uniset Match)
- Regular price
- €13.62 ex VAT
- Sale price
- €13,62
- Regular price
-
Quantity Price Breaks
SPZ1687 Gates Delta Narrow SPZ-Section V-Belt (Uniset Match)
- Regular price
- €13.62 ex VAT
- Sale price
- €13,62
- Regular price
-
Description
Gates Delta Narrow™ SPZ-Section V-Belt (Uniset Match): The Delta Narrow™ V-belts have a classical V-shaped profiles and are built for reliability and durability. For use in all industrial applications requiring narrow section v-belt drives including compressors, pumps, fans, screens, alternators, saws, milling machines etc...
The belts have anti-static properties to ISO 1813 (electrical resistance and antistatic standard) and are REACH, RoHS 2 and ATEX compliant.
High-strength polyester tensile cords provide resistance to flexing forces, fatigue and shock loads.
The belts are oil and moisture resistant and offer good grip and protection against abrasion.
Suitable for use in operating temperatures of -30 deg C to +70 deg C. All sizes in this range meet the Gates UNISET tolerance standards and can be installed without matching. The belts are manufactured in the EU and conform to the requirements of DIN 2215 / ISO 4184 / RMA IP22 / BS 3790.
Benefits: Good belt flexibility, stability and smooth-running operation, antistatic.
Technical

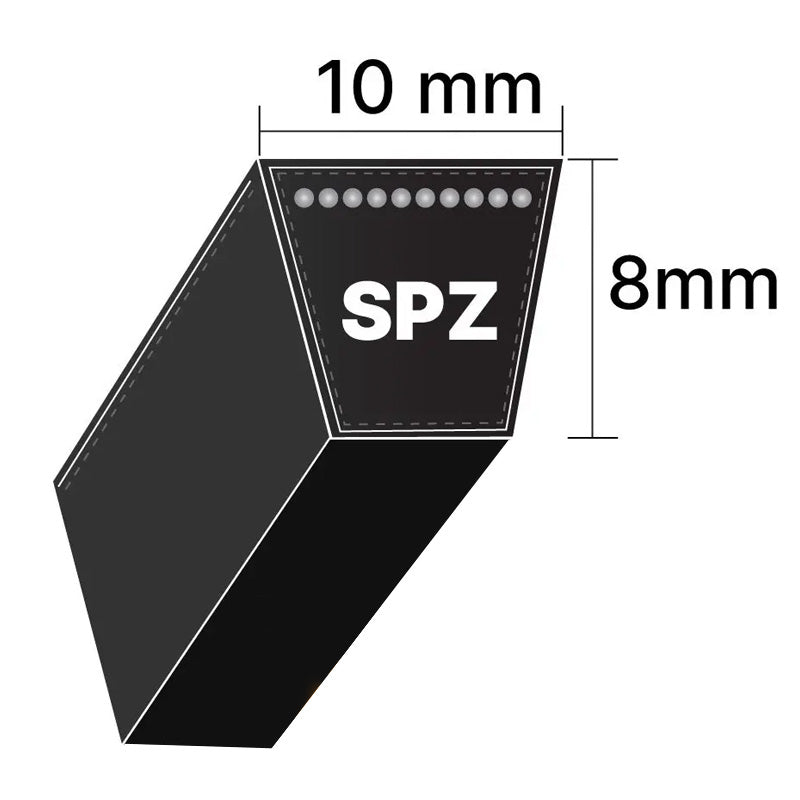

| Belt Width Approx | = | 10mm |
| Belt Depth Approx | = | 8mm |
| Inside Length Approx | = | 1649mm |
| Belt Datum Length Approx | = | 1687mm |
| Belt Length Approx | = | 1700mm |
