SKU: SS.PFT-3

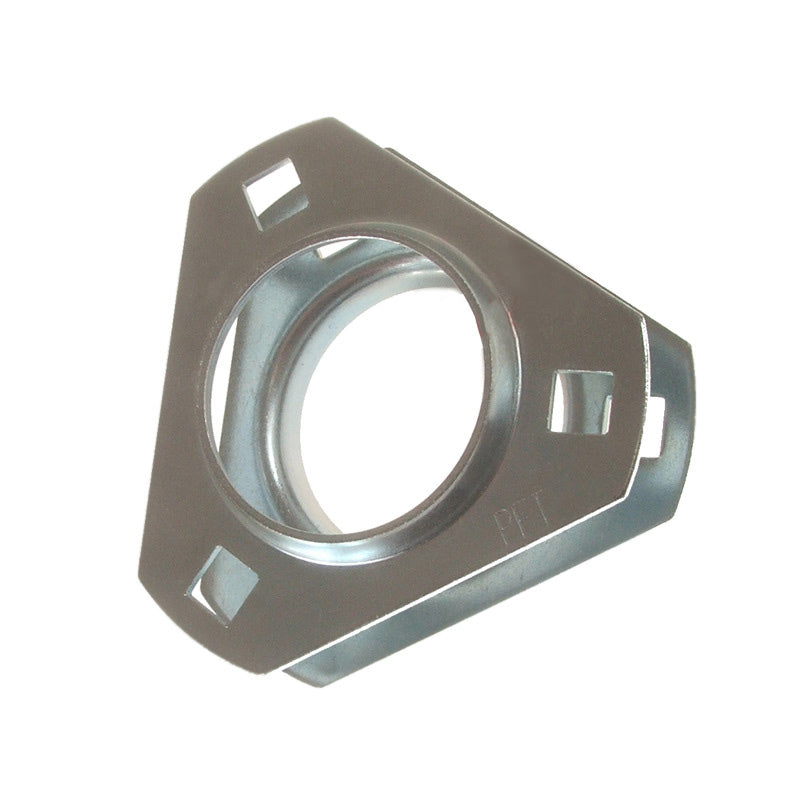

SSPFT-3 Pressed Stainless Steel 3 Bolt Triangle Flange Housing for SA and SB 201 / 202 / 203 Inserts
- Regular price
- €11.35 ex VAT
- Sale price
- €11,35
- Regular price
-
Not in stock
Quantity Price Breaks
3
€10.10
5
€9.53
9
€9.42
19
€9.31
49
€9.19
74
€9.08
99
€8.51
199
€8.40
249
€8.29
499
€8.17
999
€7.95
SKU:
SS.PFT-3
SSPFT-3 Pressed Stainless Steel 3 Bolt Triangle Flange Housing for SA and SB 201 / 202 / 203 Inserts
- Regular price
- €11.35 ex VAT
- Sale price
- €11,35
- Regular price
-
Description
3 Bolt Triangular Pressed Stainless Steel Bearing Housings: These housings are a simple economical housing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required.
An insert is NOT supplied with this housing.
Benefits: Cost effective housing

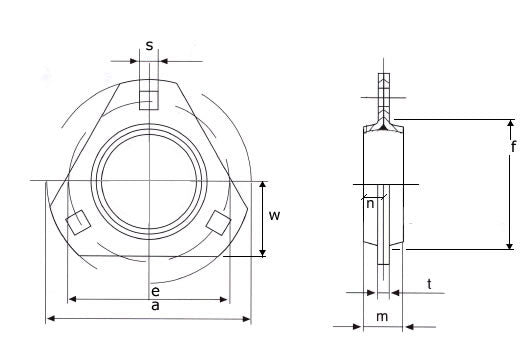

Technical
| a | = | 81mm |
| e | = | 63.5mm |
| w | = | 28.5mm |
| mm | = | 14mm |
| s | = | 7.1mm |
| t | = | 4mm |
| f | = | 49mm |
| n | = | 6.5mm |
| Weight | = | 0.26kg |
