SKU: SS.PHS10.EU

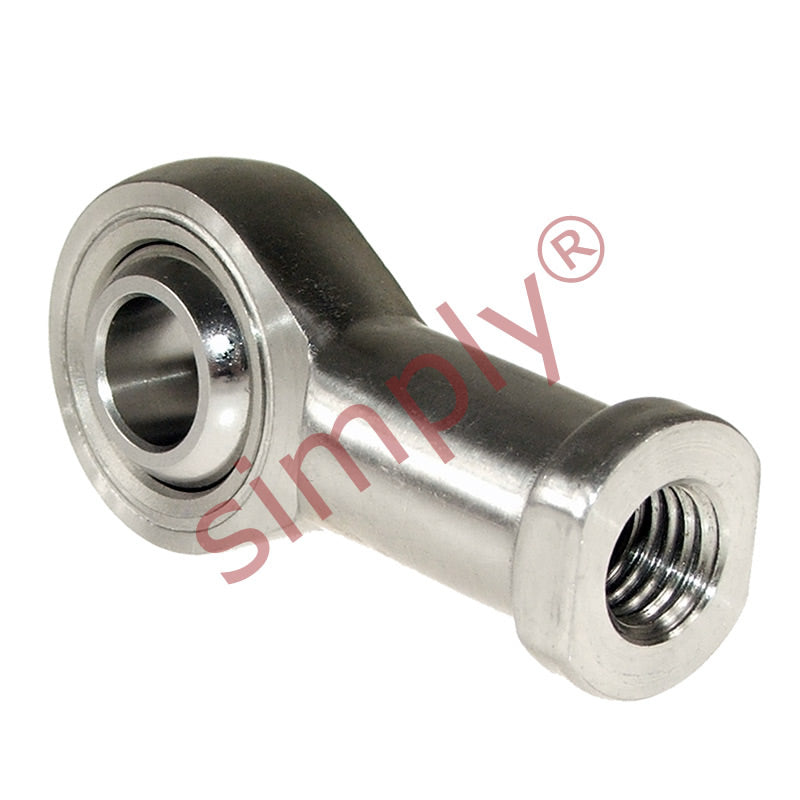

Budget SSPHS10 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
- Regular price
- €25.71 ex VAT
- Sale price
- €25,71
- Regular price
-
In stock
Quantity Price Breaks
10
€22.88
19
€21.60
29
€21.34
39
€21.08
49
€20.83
74
€20.57
99
€19.28
199
€19.03
249
€18.77
499
€18.51
999
€18.00
SKU:
SS.PHS10.EU
Budget SSPHS10 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
- Regular price
- €25.71 ex VAT
- Sale price
- €25,71
- Regular price
-
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 10mm |
| B | = | 14mm |
| r1 | = | 0.6mm |
| C1 | = | 10.5mm |
| d1 max | = | 12.9mm |
| d2 | = | 26mm |
| d3 | = | M10x1.5 |
| h1 | = | 43mm |
| L3 | = | 21mm |
| L4 | = | 56mm |
| L5 | = | 6.5mm |
| d4 | = | 15mm |
| d5 | = | 19mm |
| S | = | 17mm |
| Ball diameter | = | 3/4 inch |
| Dynamic load Cr | = | 10mm |
| Static load Cor | = | 13.6mm |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.072 kg |
