SKU: SS.POS25.EU

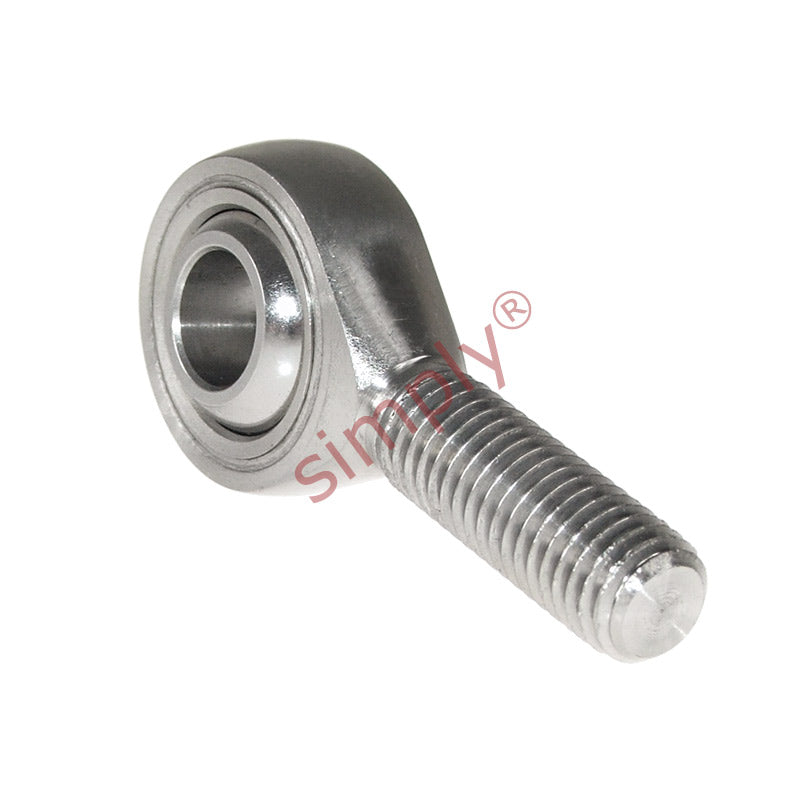

Budget SSPOS25 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
- Regular price
- €108.41 ex VAT
- Sale price
- €108,41
- Regular price
-
In stock
Quantity Price Breaks
10
€96.48
19
€91.06
29
€89.98
39
€88.90
49
€87.81
74
€86.73
99
€81.31
199
€80.22
249
€79.14
499
€78.06
999
€75.89
SKU:
SS.POS25.EU
Budget SSPOS25 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
- Regular price
- €108.41 ex VAT
- Sale price
- €108,41
- Regular price
-
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 25mm |
| B | = | 31mm |
| r1 | = | 0.6mm |
| C1 | = | 22mm |
| d1 max | = | 29.5mm |
| d2 | = | 60mm |
| d3 | = | M24x2 |
| h | = | 94mm |
| l1 | = | 57mm |
| l2 | = | 124mm |
| Ball diameter | = | 1-11/16 inch |
| Dynamic load Cr | = | 47.1 kN |
| Static load Cor | = | 74.1 kN |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.65 kg |
