SKU: SSBFBL.PL.204
SSBFBLPL204 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 20mm Bore Stainless Insert
- Regular price
- €26.01 ex VAT
- Sale price
- €26,01
- Regular price
-
In stock
Quantity Price Breaks
3
€23.15
4
€21.85
9
€21.59
19
€21.33
49
€21.07
99
€20.81
499
€19.51
999
€19.25
1999
€18.99
2999
€18.73
4999
€18.21
SKU:
SSBFBL.PL.204
SSBFBLPL204 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 20mm Bore Stainless Insert
- Regular price
- €26.01 ex VAT
- Sale price
- €26,01
- Regular price
-
Description

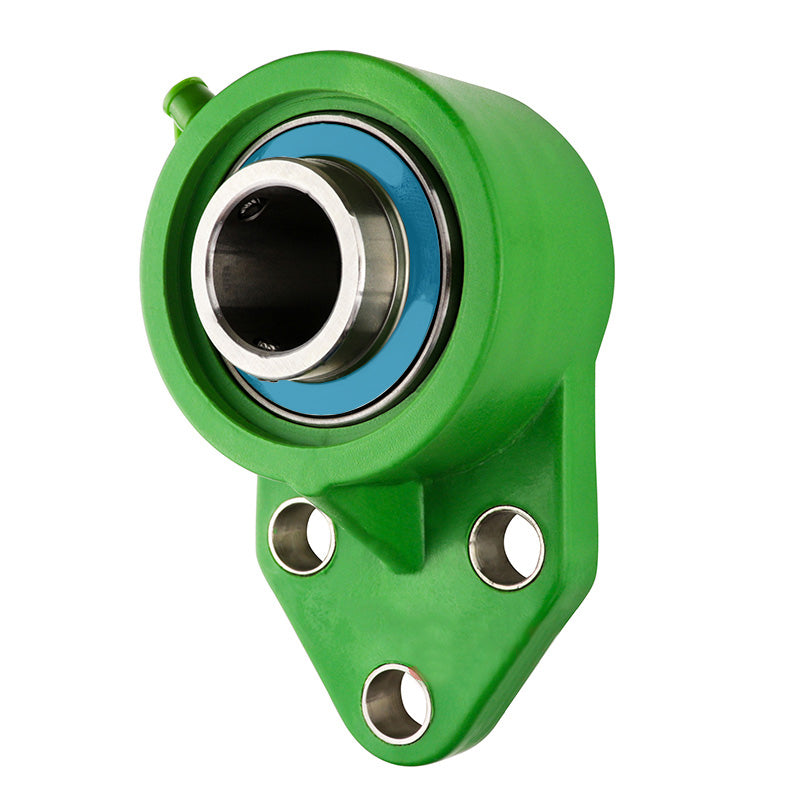

Three Bolt Thermoplastic Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. Insert is filled with food-grade grease.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Technical
| d | = | 20mm |
| a | = | 72.20 (+/- 2mm) |
| e | = | 33.70mm (+/- 0.7mm) |
| b | = | 62mm |
| g | = | 11.40mm (+/- 1.5mm) |
| L | = | |
| s | = | |
| i | = | |
| Bi | = | |
| n | = | 12.7mm |
| Bolt | = | M10 |
| Weight | = | 0.08kg |
| Temperature Range | = | -35 to 102 deg C |
