SKU: SSBFBL.PL.208

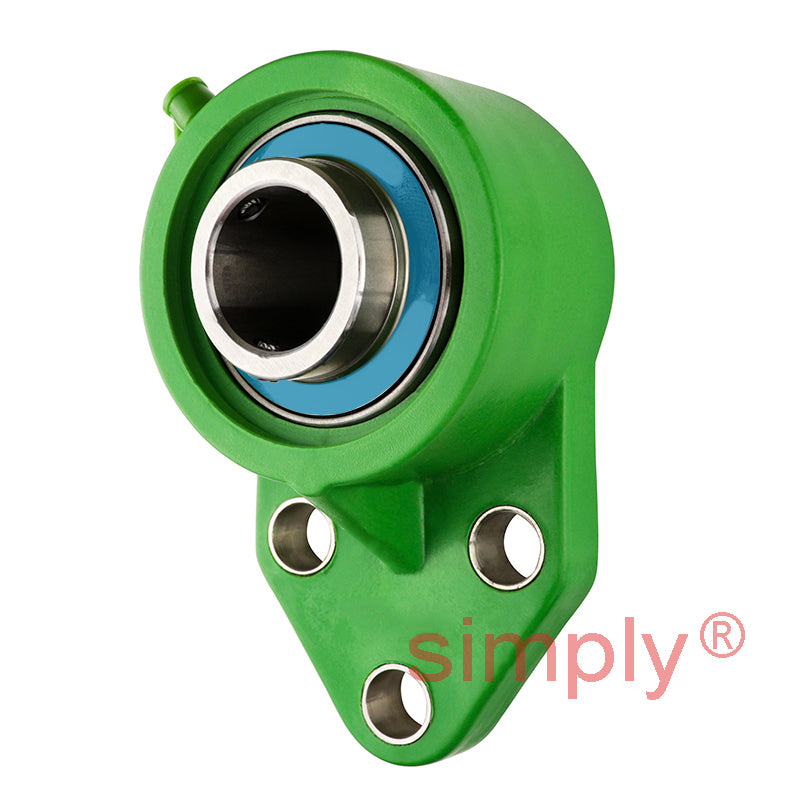

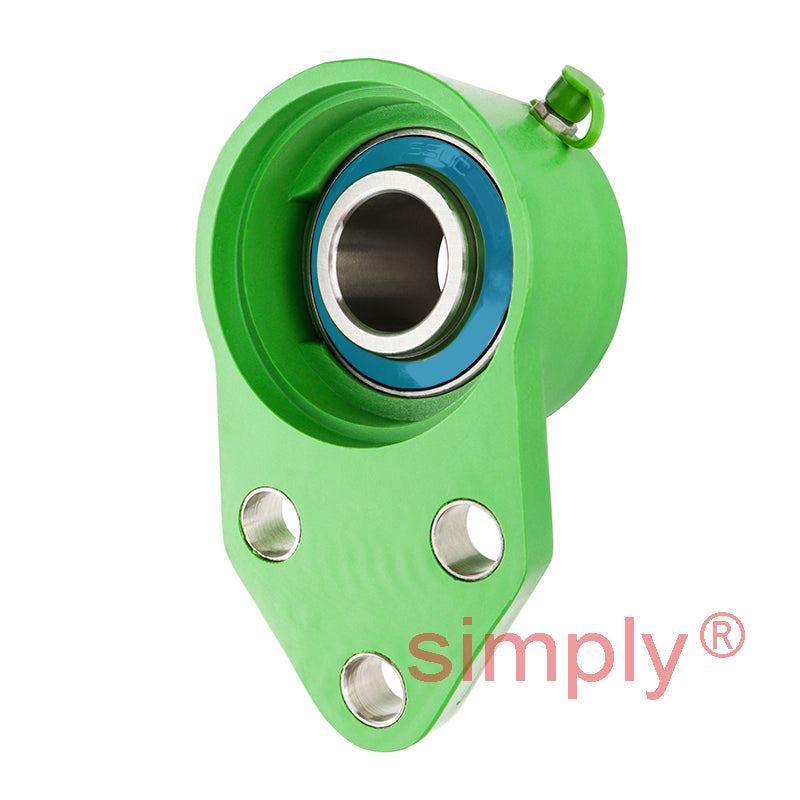

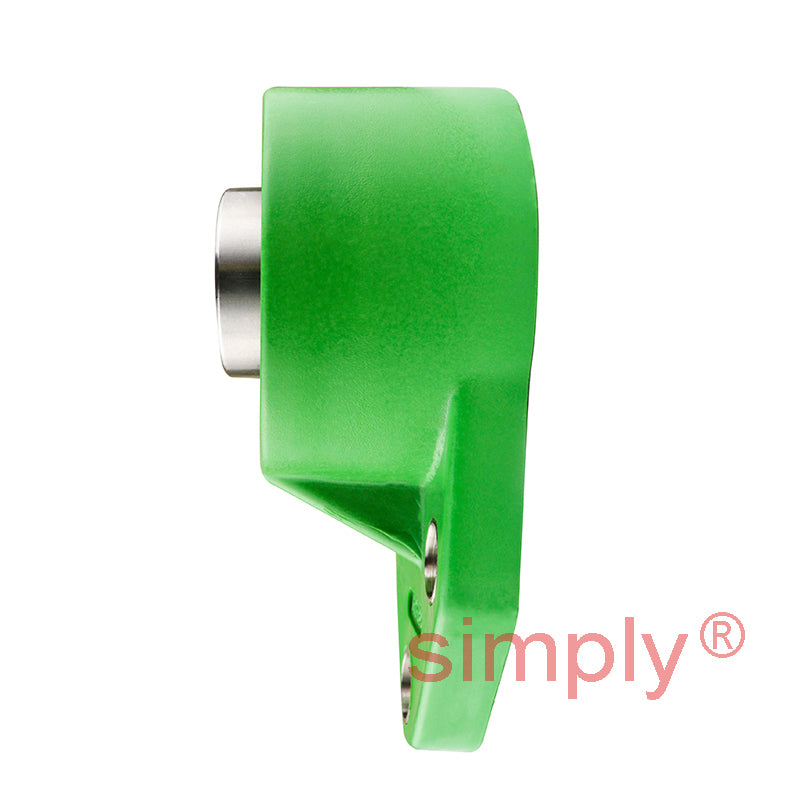

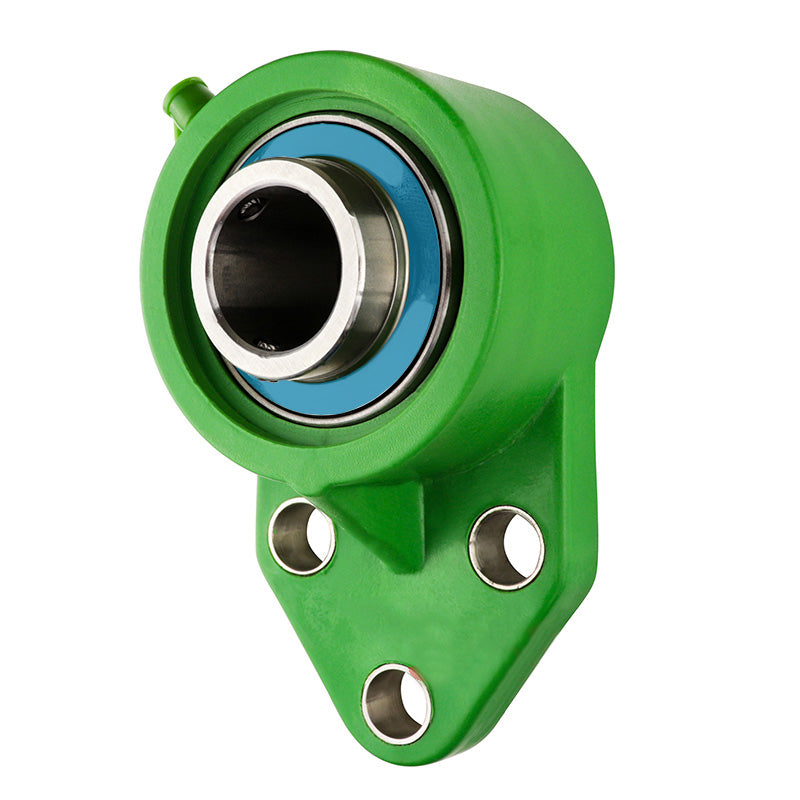

SSBFBLPL208 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 40mm Bore Stainless Insert
- Regular price
- €41.63 ex VAT
- Sale price
- €41,63
- Regular price
-
In stock
Quantity Price Breaks
3
€37.05
4
€34.97
9
€34.55
19
€34.14
49
€33.72
99
€33.30
499
€31.22
999
€30.81
1999
€30.39
2999
€29.97
4999
€29.14
SKU:
SSBFBL.PL.208
SSBFBLPL208 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 40mm Bore Stainless Insert
- Regular price
- €41.63 ex VAT
- Sale price
- €41,63
- Regular price
-
Description
Three Bolt Thermoplastic Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. Insert is filled with food-grade grease.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Technical
| d | = | 40mm |
| a | = | 114mm |
| e | = | 35mm |
| b | = | 100mm |
| g | = | 16mm |
| L | = | |
| s | = | |
| i | = | |
| Bi | = | |
| n | = | 19mm |
| Bolt | = | M12 |
| Weight | = | 0.3kg |
| Temperature Range | = | -35 to 102 deg C |
