SKU: SSBFBL.PL.209

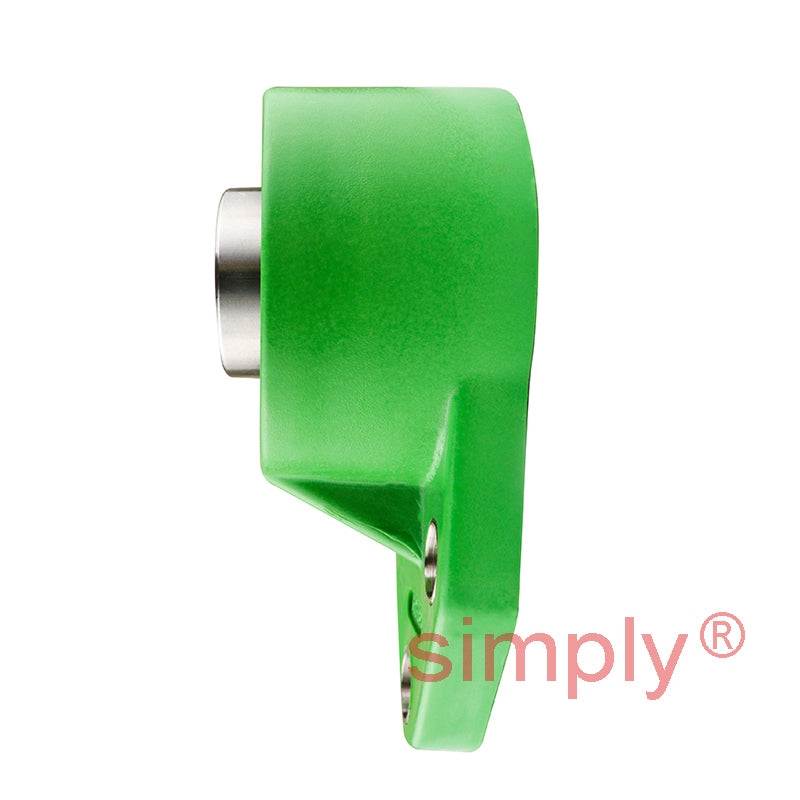

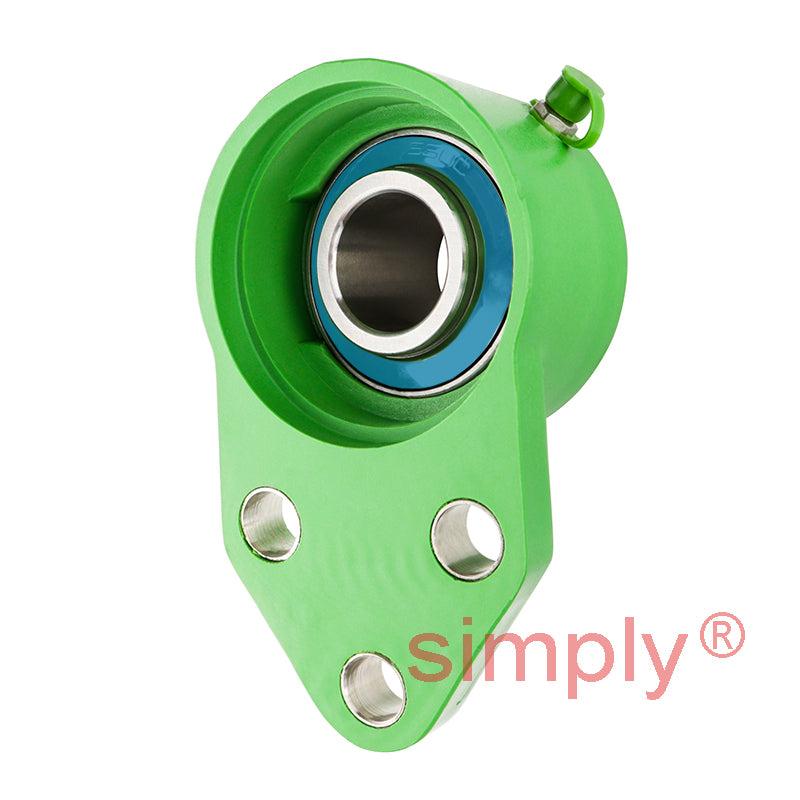

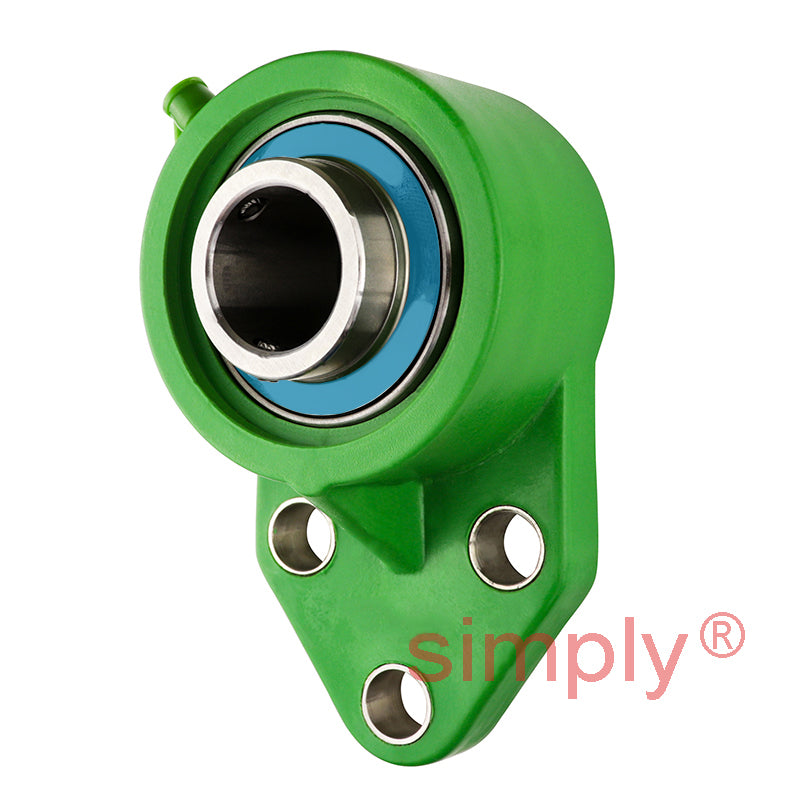

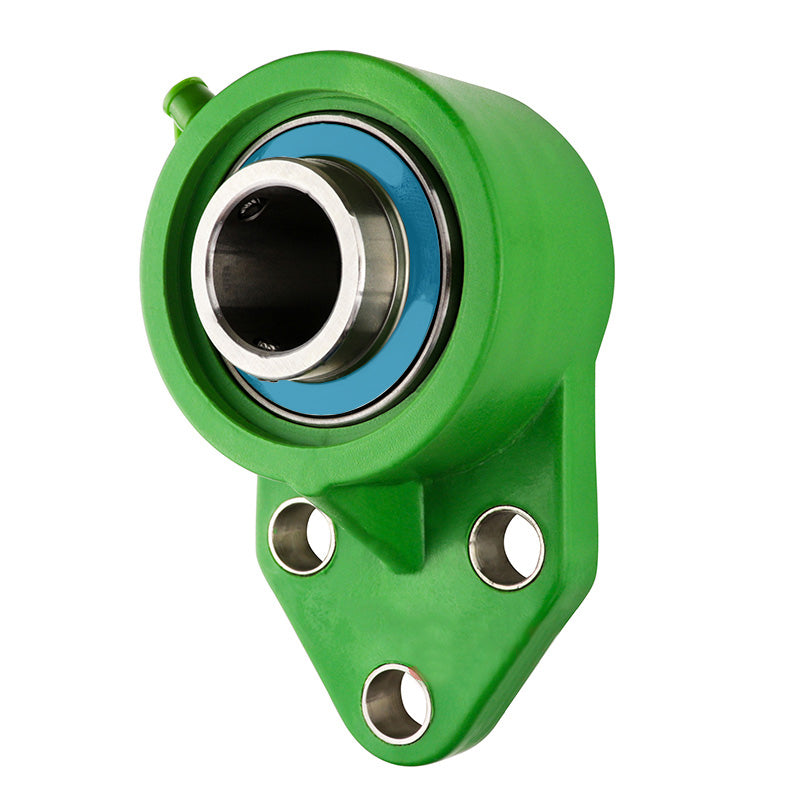

SSBFBLPL209 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 45mm Bore Stainless Insert
- Regular price
- €57.23 ex VAT
- Sale price
- €57,23
- Regular price
-
In stock
Quantity Price Breaks
3
€50.93
4
€48.07
9
€47.50
19
€46.93
49
€46.36
99
€45.78
499
€42.92
999
€42.35
1999
€41.78
2999
€41.21
4999
€40.06
SKU:
SSBFBL.PL.209
SSBFBLPL209 Metric Thermo Plastic Three Bolt Bracket Flange Housing with 45mm Bore Stainless Insert
- Regular price
- €57.23 ex VAT
- Sale price
- €57,23
- Regular price
-
Description
Three Bolt Thermoplastic Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required. Insert is filled with food-grade grease.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.

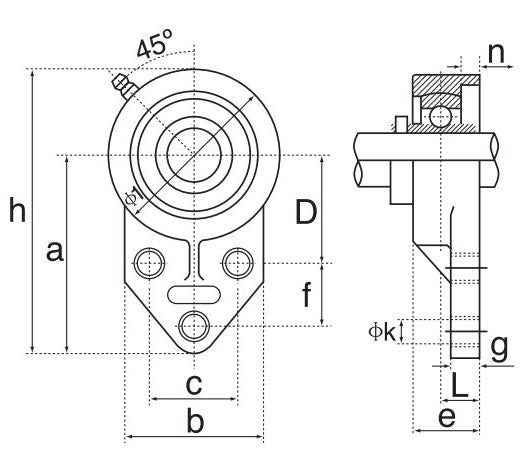

Technical
| d | = | 45mm |
| a | = | 121mm |
| e | = | 35mm |
| b | = | 106mm |
| g | = | 18mm |
| L | = | |
| s | = | |
| i | = | |
| Bi | = | |
| n | = | 19mm |
| Bolt | = | M12 |
| Weight | = | 0.34kg |
| Temperature Range | = | -35 to 102 deg C |
