SKU: SSBFL.PL.207

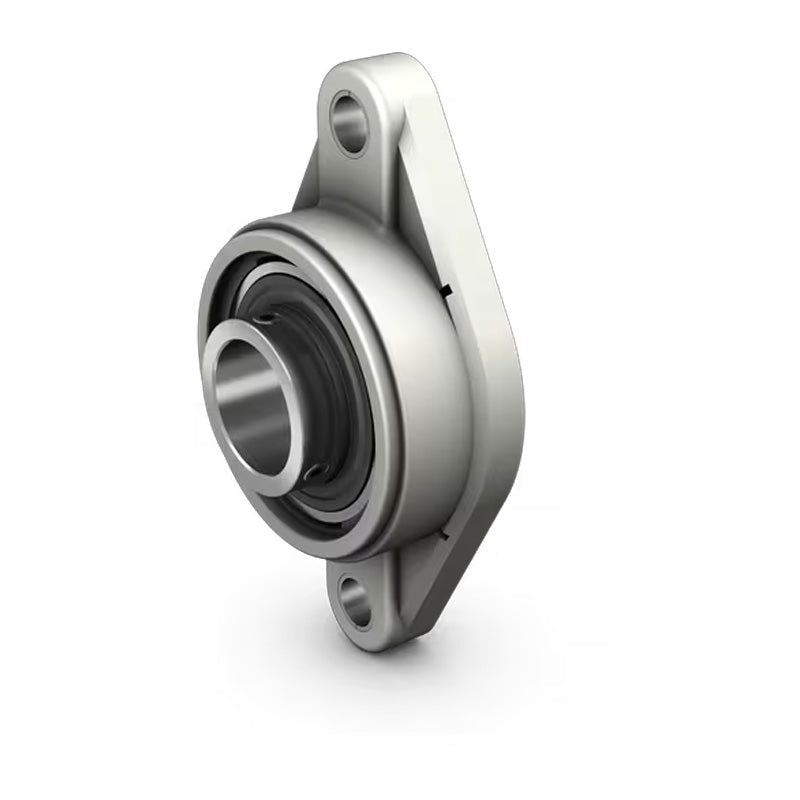

SSBFLPL207 Metric Thermo Plastic Two Bolt Oval Flange Housing with 35mm Bore Stainless Insert
- Regular price
- €46.63 ex VAT
- Sale price
- €46,63
- Regular price
-
Quantity Price Breaks
SSBFLPL207 Metric Thermo Plastic Two Bolt Oval Flange Housing with 35mm Bore Stainless Insert
- Regular price
- €46.63 ex VAT
- Sale price
- €46,63
- Regular price
-
Description
SSBFLPL Thermo Plastic Two Bolt Oval Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Technical
| d | = | 35mm |
| a | = | 164mm |
| e | = | 130mm |
| b | = | 90mm |
| g | = | 16mm |
| L | = | 33mm |
| s | = | 13mm |
| i | = | 18mm |
| Bi | = | 32mm |
| n | = | 17.5mm |
| Bolt | = | 12mm |
| Weight | = | 0.16kg |
| Temperature Range | = | -35 to 102 deg C |
