SKU: SSUC.201-8

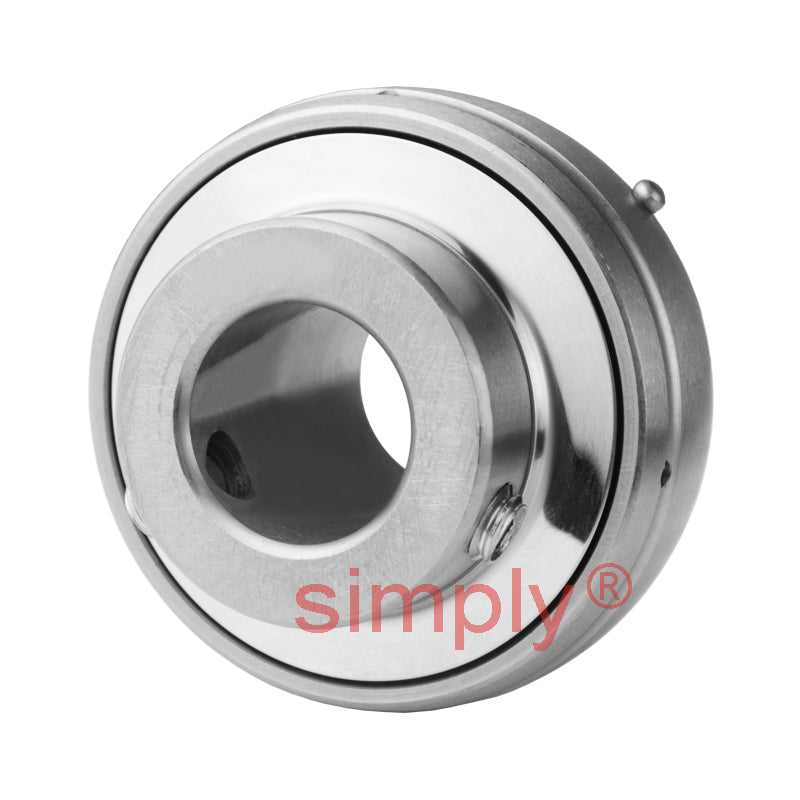

SSUC201-8 Imperial Stainless Steel Bearing Insert with 1/2 inch Bore 47mm Outside Dia
- Regular price
- €9.69 ex VAT
- Sale price
- €9,69
- Regular price
-
In stock
Quantity Price Breaks
3
€8.62
4
€8.14
9
€8.04
19
€7.95
49
€7.85
99
€7.75
499
€7.27
999
€7.17
1999
€7.07
2999
€6.98
4999
€6.78
SKU:
SSUC.201-8
SSUC201-8 Imperial Stainless Steel Bearing Insert with 1/2 inch Bore 47mm Outside Dia
- Regular price
- €9.69 ex VAT
- Sale price
- €9,69
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 1/2 inch |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 17mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| G | = | 4.8mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.21 kg | = | Dynamic load |
| 1000 kgf | = | Static load |
| 630 kgf | = | N/A |
