SKU: SSUC.202

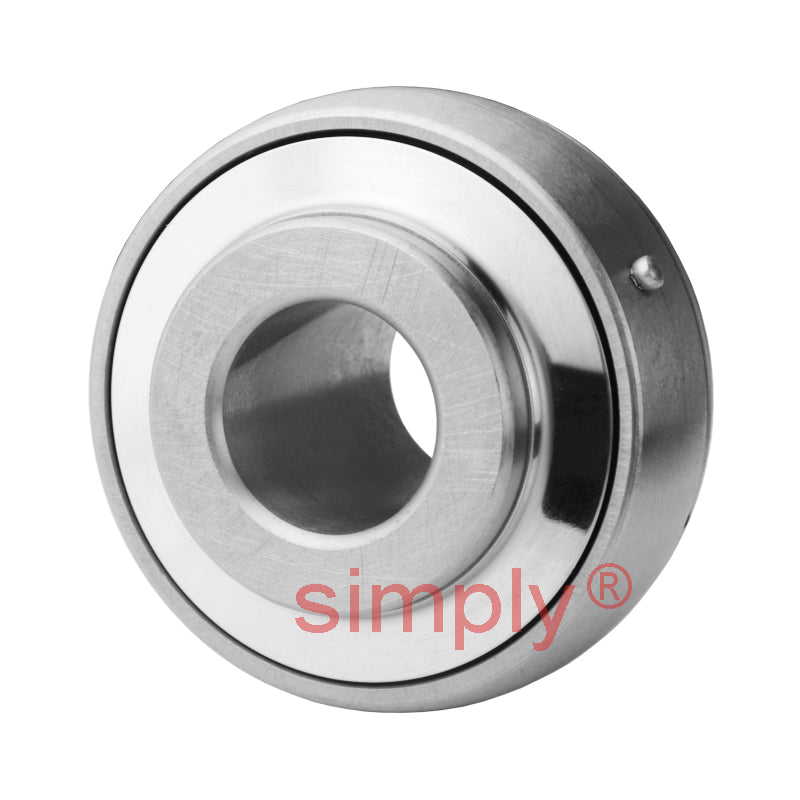

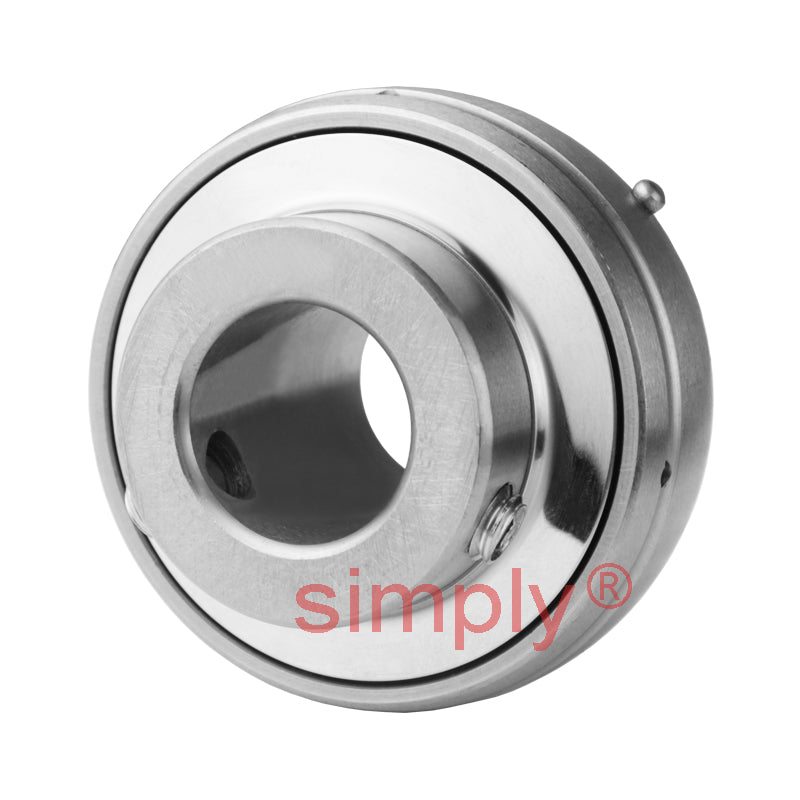

SSUC202 Metric Stainless Steel Bearing Insert with 15mm Bore 47mm Outside Dia
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
In stock
Quantity Price Breaks
3
€17.03
4
€16.07
9
€15.88
19
€15.69
49
€15.50
99
€15.30
499
€14.35
999
€14.16
1999
€13.96
2999
€13.77
4999
€13.39
SKU:
SSUC.202
SSUC202 Metric Stainless Steel Bearing Insert with 15mm Bore 47mm Outside Dia
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 15mm |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 17mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| G | = | 4.8mm |
| Grub screw | = | M6x1 |
| Weight | = | 0.21 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
