SKU: SSUC.204

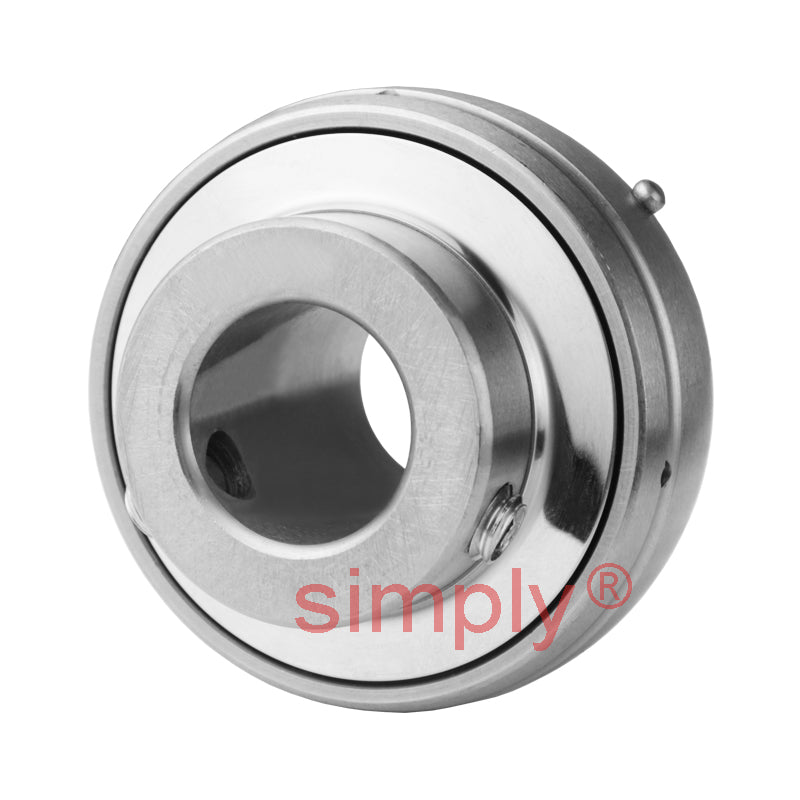

SSUC204 Metric Stainless Steel Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- €16.71 ex VAT
- Sale price
- €16,71
- Regular price
-
In stock
Quantity Price Breaks
3
€14.87
4
€14.04
9
€13.87
19
€13.70
49
€13.54
99
€13.37
499
€12.53
999
€12.37
1999
€12.20
2999
€12.03
4999
€11.70
SKU:
SSUC.204
SSUC204 Metric Stainless Steel Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- €16.71 ex VAT
- Sale price
- €16,71
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 20mm |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 17mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| G | = | 4.8mm |
| Grub screw | = | M6x1 |
| Weight | = | 0.21 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
