SKU: SSUC.206-18

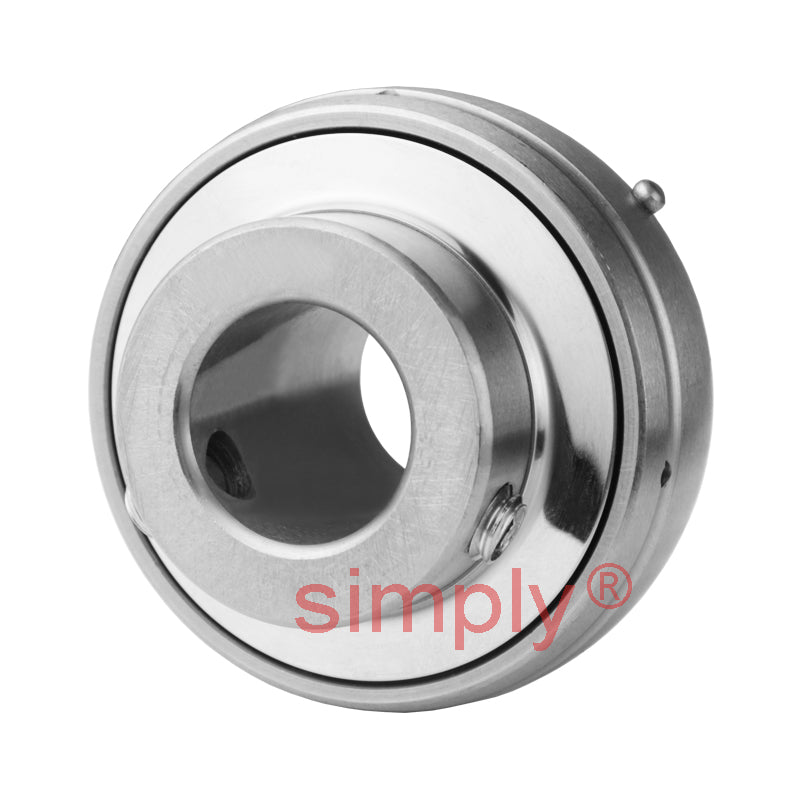

SSUC206-18 Imperial Stainless Steel Bearing Insert with 1-1/8 inch Bore 62mm Outside Dia
- Regular price
- €25.97 ex VAT
- Sale price
- €25,97
- Regular price
-
In stock
Quantity Price Breaks
3
€23.11
4
€21.81
9
€21.56
19
€21.30
49
€21.04
99
€20.78
499
€19.48
999
€19.22
1999
€18.96
2999
€18.70
4999
€18.18
SKU:
SSUC.206-18
SSUC206-18 Imperial Stainless Steel Bearing Insert with 1-1/8 inch Bore 62mm Outside Dia
- Regular price
- €25.97 ex VAT
- Sale price
- €25,97
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 1-1/8 inch |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 19mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| G | = | 6mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.34 kg | = | Dynamic load |
| 1520 kgf | = | Static load |
| 1020 kgf | = | N/A |
