SKU: SSUC.206-20

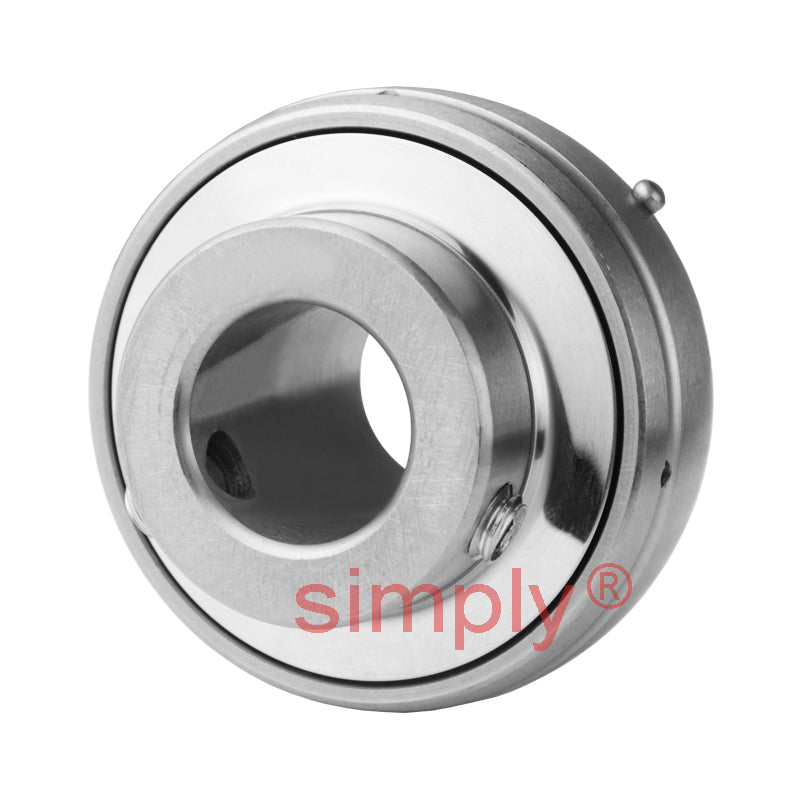

SSUC206-20 Imperial Stainless Steel Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
- Regular price
- €23.99 ex VAT
- Sale price
- €23,99
- Regular price
-
In stock
Quantity Price Breaks
3
€21.35
4
€20.15
9
€19.91
19
€19.67
49
€19.43
99
€19.19
499
€17.99
999
€17.75
1999
€17.51
2999
€17.27
4999
€16.79
SKU:
SSUC.206-20
SSUC206-20 Imperial Stainless Steel Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
- Regular price
- €23.99 ex VAT
- Sale price
- €23,99
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 1-1/4 inch |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 19mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| G | = | 6mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.34 kg | = | Dynamic load |
| 1520 kgf | = | Static load |
| 1020 kgf | = | N/A |
