SKU: SSUC.209

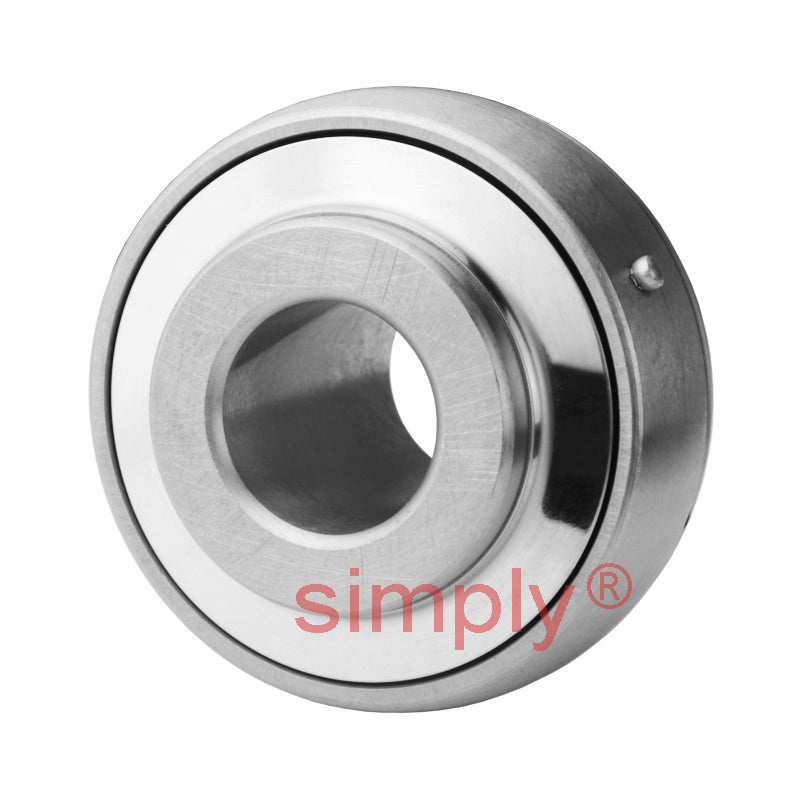

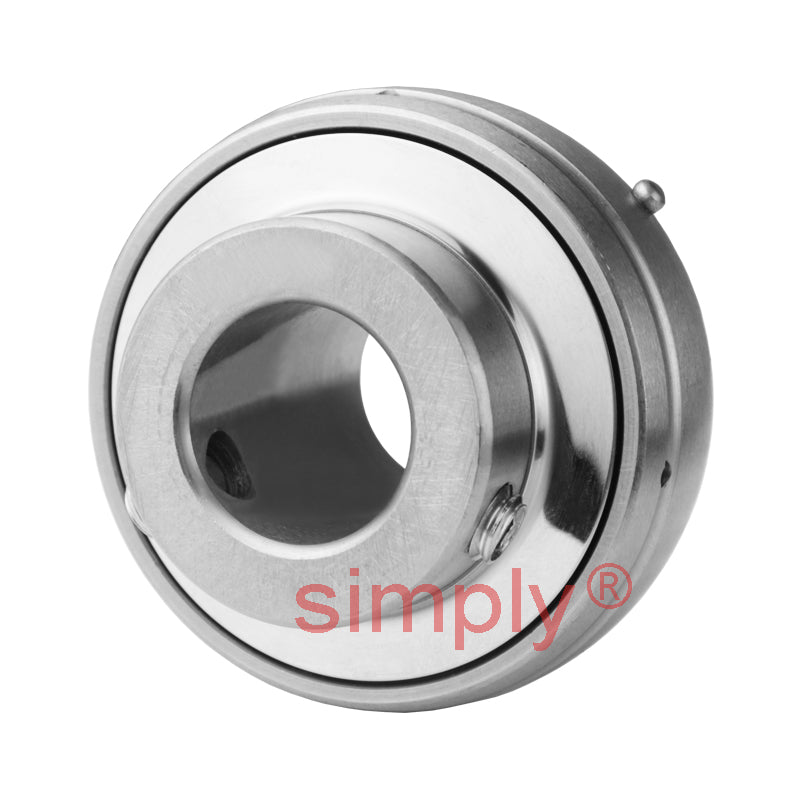

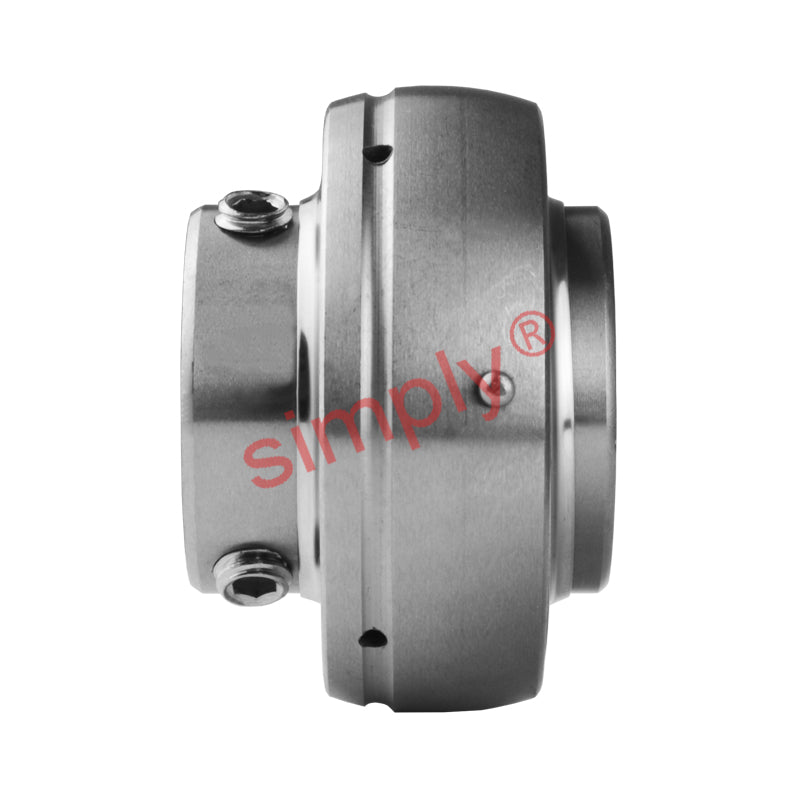

SSUC209 Metric Stainless Steel Bearing Insert with 45mm Bore 85mm Outside Dia
- Regular price
- €38.75 ex VAT
- Sale price
- €38,75
- Regular price
-
In stock
Quantity Price Breaks
3
€34.49
4
€32.55
9
€32.16
19
€31.78
49
€31.39
99
€31.00
499
€29.06
999
€28.68
1999
€28.29
2999
€27.90
4999
€27.13
SKU:
SSUC.209
SSUC209 Metric Stainless Steel Bearing Insert with 45mm Bore 85mm Outside Dia
- Regular price
- €38.75 ex VAT
- Sale price
- €38,75
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 45mm |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 10mm |
| Grub screw | = | M8x1.0 |
| Weight | = | 0.68 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
